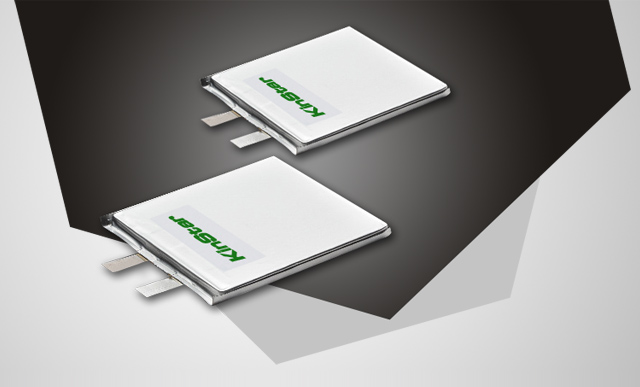

Polymer Cells

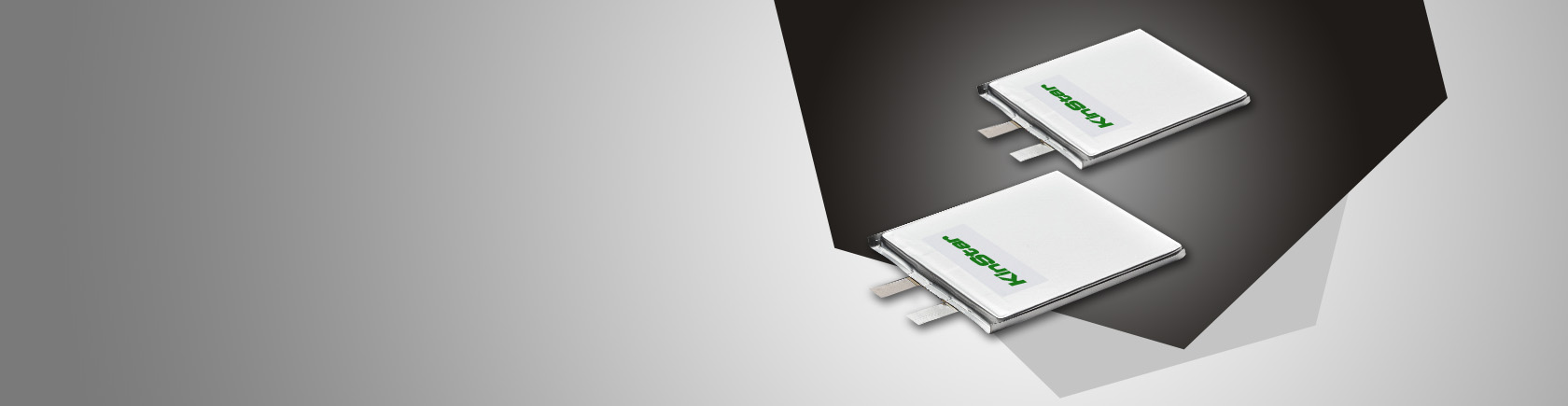

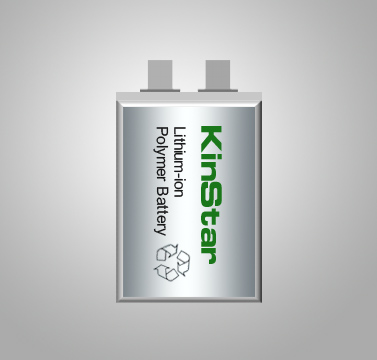

Li-Polymer Battery
Evolving from Lithium-ion batteries, Lithium-ion Polymer(Li-Polymer) batteries offer a distinct advantage over their predecessor in terms of cost, utility, durability and flexibility. A Li-Polymer battery can be shaped to fit into an array of devices. As cell phones and laptops become thinner, it is important to develop new ways to power these ever important devices.
Flexible sizes
Lithium-ion Polymer(Li-Polymer) cells are available to have various sizes and shapes. The minimum thickness can be less than 1mm. Li-Polymer batteries are widely use in various portable devices, such as smartphones, laptop and so on...
High energy density
Li-Polymer battery is recognized safer than Lithium-ion cylindrical battery even it has higher energy density - 100-265Wh/KG or 250-730Wh/L.
High drain current
High output power type Li-Polymer batteries can continuous discharge at 30C-40C, This type of Li-Polymer batteries are developing for RC models, airsoft guns, UAV and other deveices need constant and robust power in a short time.
Long service life
Cycle life of qualified Li-Polymer battery should over 300 cycles(over than 80% DOD), but real service life up to 500 ~ 800 cycles.
Li-Polymer Cell Models & Specifications
| Cell Model | Type | Thickness (mm) | Width (mm) | Length (mm) | Nominal Capacity(mAh) | Nominal Voltage(V) | Energy (Wh) |
| 381018 | Polymer | 3.8 | 10 | 18 | 35 | 3.70 | 0.13 |
| 401020 | Polymer | 4.0 | 10 | 20 | 50 | 3.70 | 0.19 |
| 371025 | Polymer | 3.7 | 10 | 25 | 50 | 3.70 | 0.19 |
| 301030 | Polymer | 3.0 | 10 | 30 | 60 | 3.70 | 0.22 |
| 321035 | Polymer | 3.2 | 10 | 35 | 75 | 3.70 | 0.28 |
| 301048 | Polymer | 3.0 | 10 | 48 | 100 | 3.70 | 0.37 |
| 401055 | Polymer | 4.0 | 10 | 55 | 160 | 3.70 | 0.59 |
| 431165 | Polymer | 4.3 | 11 | 65 | 250 | 3.70 | 0.93 |
| 451215 | Polymer | 4.5 | 12 | 15 | 40 | 3.70 | 0.15 |
| 531220 | Polymer | 5.3 | 12 | 20 | 85 | 3.70 | 0.31 |
| 401225 | Polymer | 4.0 | 12 | 25 | 90 | 3.70 | 0.33 |
| 401230 | Polymer | 4.0 | 12 | 30 | 100 | 3.70 | 0.37 |
| 401235 | Polymer | 4.0 | 12 | 35 | 130 | 3.70 | 0.48 |
| 541240 | Polymer | 5.4 | 12 | 40 | 200 | 3.70 | 0.74 |
| 451245 | Polymer | 4.5 | 12 | 45 | 200 | 3.70 | 0.74 |
| 301320 | Polymer | 3.0 | 13 | 20 | 50 | 3.70 | 0.19 |
| 681362 | Polymer | 6.8 | 13 | 62 | 530 | 3.70 | 1.96 |
| 401422 | Polymer | 4.0 | 14 | 22 | 80 | 3.70 | 0.30 |
| 501440 | Polymer | 5.0 | 14 | 40 | 250 | 3.70 | 0.93 |
| 401515 | Polymer | 4.0 | 15 | 15 | 48 | 3.70 | 0.18 |
| 401525 | Polymer | 4.0 | 15 | 25 | 100 | 3.70 | 0.37 |
| 401546 | Polymer | 4.0 | 15 | 46 | 240 | 3.70 | 0.89 |
| 601628 | Polymer | 6.0 | 16 | 28 | 210 | 3.70 | 0.78 |
| 741640 | Polymer | 7.4 | 16 | 40 | 420 | 3.70 | 1.55 |
| 501730 | Polymer | 5.0 | 17 | 30 | 200 | 3.70 | 0.74 |
| 401834 | Polymer | 4.0 | 18 | 34 | 200 | 3.70 | 0.74 |
| 502020 | Polymer | 5.0 | 20 | 20 | 150 | 3.70 | 0.56 |
| 302025 | Polymer | 3.0 | 20 | 25 | 100 | 3.70 | 0.37 |
| 502030 | Polymer | 5.0 | 20 | 30 | 250 | 3.70 | 0.93 |
| 502035 | Polymer | 5.0 | 20 | 35 | 280 | 3.70 | 1.04 |
| 602040 | Polymer | 6.0 | 20 | 40 | 450 | 3.70 | 1.67 |
| 702235 | Polymer | 7.0 | 22 | 35 | 500 | 3.70 | 1.85 |
| 642248 | Polymer | 6.4 | 22 | 48 | 680 | 3.70 | 2.52 |
| 502325 | Polymer | 5.0 | 23 | 25 | 250 | 3.70 | 0.93 |
| 502459 | Polymer | 5.0 | 24 | 59 | 700 | 3.70 | 2.59 |
| 502530 | Polymer | 5.0 | 25 | 30 | 320 | 3.70 | 1.18 |
| 602535 | Polymer | 6.0 | 25 | 35 | 500 | 3.70 | 1.85 |
| 602540 | Polymer | 6.0 | 25 | 40 | 560 | 3.70 | 2.07 |
| 602652 | Polymer | 6.0 | 26 | 52 | 800 | 3.70 | 2.96 |
| 572729 | Polymer | 5.7 | 27 | 29 | 400 | 3.70 | 1.48 |
| 802795 | Polymer | 8.0 | 27 | 95 | 2200 | 3.70 | 8.14 |
| 472850 | Polymer | 4.7 | 28 | 50 | 600 | 3.70 | 2.22 |
| 702945 | Polymer | 7.0 | 29 | 45 | 900 | 3.70 | 3.33 |
| 6029127 | Polymer | 6.0 | 29 | 127 | 2500 | 3.70 | 9.25 |
| 503030 | Polymer | 5.0 | 30 | 30 | 400 | 3.70 | 1.48 |
| 603035 | Polymer | 6.0 | 30 | 35 | 600 | 3.70 | 2.22 |
| 503040 | Polymer | 5.0 | 30 | 40 | 550 | 3.70 | 2.04 |
| 803048 | Polymer | 8.0 | 30 | 48 | 1200 | 3.70 | 4.44 |
| 503060 | Polymer | 5.0 | 30 | 60 | 900 | 3.70 | 3.33 |
| 703080 | Polymer | 7.0 | 30 | 80 | 1800 | 3.70 | 6.66 |
| 5730156 | Polymer | 5.7 | 30 | 156 | 3000 | 3.70 | 11.10 |
| 443138 | Polymer | 4.4 | 31 | 38 | 500 | 3.70 | 1.85 |
| 803270 | Polymer | 8.0 | 32 | 70 | 2000 | 3.70 | 7.40 |
| 703440 | Polymer | 7.0 | 34 | 40 | 950 | 3.70 | 3.52 |
| 803445 | Polymer | 8.0 | 34 | 45 | 1300 | 3.70 | 4.81 |
| 603448 | Polymer | 6.0 | 34 | 48 | 1050 | 3.70 | 3.89 |
| 103450 | Polymer | 10.0 | 34 | 50 | 1850 | 3.70 | 6.85 |
| 673456 | Polymer | 6.7 | 34 | 56 | 1300 | 3.70 | 4.81 |
| 503465 | Polymer | 5.0 | 34 | 65 | 1200 | 3.70 | 4.44 |
| 803482 | Polymer | 8.0 | 34 | 82 | 2500 | 3.70 | 9.25 |
| 523495 | Polymer | 5.2 | 34 | 95 | 2000 | 3.70 | 7.40 |
| 7434120 | Polymer | 7.4 | 34 | 120 | 3200 | 3.70 | 11.84 |
| 643562 | Polymer | 6.4 | 35 | 62 | 1500 | 3.70 | 5.55 |
| 5735130 | Polymer | 5.7 | 35 | 130 | 3000 | 3.70 | 11.10 |
| 603759 | Polymer | 6.0 | 37 | 59 | 1500 | 3.70 | 5.55 |
| 743845 | Polymer | 7.4 | 38 | 45 | 1300 | 3.70 | 4.81 |
| 903851 | Polymer | 9.0 | 38 | 51 | 1800 | 3.70 | 6.66 |
| 643956 | Polymer | 6.4 | 39 | 56 | 1500 | 3.70 | 5.55 |
| 843962 | Polymer | 8.4 | 39 | 62 | 2250 | 3.70 | 8.33 |
| 114045 | Polymer | 10.0 | 40 | 45 | 2000 | 3.70 | 7.40 |
| 974049 | Polymer | 9.7 | 40 | 49 | 2000 | 3.70 | 7.40 |
| 704060 | Polymer | 7.0 | 40 | 60 | 1950 | 3.70 | 7.22 |
| 904085 | Polymer | 9.0 | 40 | 85 | 3750 | 3.70 | 13.88 |
| 644096 | Polymer | 6.4 | 40 | 96 | 2800 | 3.70 | 10.36 |
| 7440165 | Polymer | 7.4 | 40 | 165 | 5000 | 3.70 | 18.50 |
| 604167 | Polymer | 6.0 | 41 | 67 | 1800 | 3.70 | 6.66 |
| 8741120 | Polymer | 8.7 | 41 | 120 | 5000 | 3.70 | 18.50 |
| 844270 | Polymer | 8.4 | 42 | 70 | 2800 | 3.70 | 10.36 |
| 634297 | Polymer | 6.3 | 42 | 97 | 3000 | 3.70 | 11.10 |
| 6842113 | Polymer | 6.8 | 42 | 113 | 3600 | 3.70 | 13.32 |
| 524358 | Polymer | 5.2 | 43 | 58 | 1500 | 3.70 | 5.55 |
| 864367 | Polymer | 8.6 | 43 | 67 | 3000 | 3.70 | 11.10 |
| 534389 | Polymer | 5.3 | 43 | 89 | 2300 | 3.70 | 8.51 |
| 604450 | Polymer | 6.0 | 44 | 50 | 1500 | 3.70 | 5.55 |
| 704483 | Polymer | 7.0 | 44 | 83 | 3200 | 3.70 | 11.84 |
| 334561 | Polymer | 3.3 | 45 | 61 | 900 | 3.70 | 3.33 |
| 7045130 | Polymer | 7.0 | 45 | 130 | 4500 | 3.70 | 16.65 |
| 5745135 | Polymer | 5.7 | 45 | 135 | 4000 | 3.70 | 14.80 |
| 474678 | Polymer | 4.7 | 46 | 78 | 1900 | 3.70 | 7.03 |
| 674697 | Polymer | 6.7 | 46 | 97 | 3500 | 3.70 | 12.95 |
| 4546146 | Polymer | 4.5 | 46 | 146 | 3400 | 3.70 | 12.58 |
| 604758 | Polymer | 6.0 | 47 | 58 | 1700 | 3.70 | 6.29 |
| 504770 | Polymer | 5.0 | 47 | 70 | 1700 | 3.70 | 6.29 |
| 604775 | Polymer | 6.0 | 47 | 75 | 2400 | 3.70 | 8.88 |
| 504792 | Polymer | 5.0 | 47 | 92 | 2500 | 3.70 | 9.25 |
| 6047125 | Polymer | 6.0 | 47 | 125 | 4000 | 3.70 | 14.80 |
| 504850 | Polymer | 5.0 | 48 | 50 | 1250 | 3.70 | 4.63 |
| 504854 | Polymer | 5.0 | 48 | 54 | 1400 | 3.70 | 5.18 |
| 574860 | Polymer | 5.7 | 48 | 60 | 1700 | 3.70 | 6.29 |
| 474864 | Polymer | 4.7 | 48 | 64 | 1500 | 3.70 | 5.55 |
| 704872 | Polymer | 7.0 | 48 | 72 | 2800 | 3.70 | 10.36 |
| 7048166 | Polymer | 7.0 | 48 | 166 | 6400 | 3.70 | 23.68 |
| 574949 | Polymer | 5.7 | 49 | 49 | 1350 | 3.70 | 5.00 |
| 444996 | Polymer | 4.4 | 49 | 96 | 2300 | 3.70 | 8.51 |
| 6049134 | Polymer | 6.0 | 49 | 134 | 4900 | 3.70 | 18.13 |
| 405050 | Polymer | 4.0 | 50 | 50 | 1000 | 3.70 | 3.70 |
| 805055 | Polymer | 8.0 | 50 | 55 | 2500 | 3.70 | 9.25 |
| 805060 | Polymer | 8.0 | 50 | 60 | 2600 | 3.70 | 9.62 |
| 805085 | Polymer | 8.0 | 50 | 85 | 4000 | 3.70 | 14.80 |
| 7450117 | Polymer | 7.4 | 50 | 117 | 4950 | 3.70 | 18.32 |
| 5050140 | Polymer | 5.0 | 50 | 140 | 4200 | 3.70 | 15.54 |
| 5750150 | Polymer | 5.7 | 50 | 150 | 5000 | 3.70 | 18.50 |
| 905172 | Polymer | 9.0 | 51 | 72 | 3900 | 3.70 | 14.43 |
| 975290 | Polymer | 9.7 | 52 | 90 | 5200 | 3.70 | 19.24 |
| 7050100 | Polymer | 7.0 | 50 | 100 | 4500 | 3.70 | 16.65 |
| 7450117 | Polymer | 7.4 | 50 | 117 | 4950 | 3.70 | 18.32 |
| 5050140 | Polymer | 5.0 | 50 | 140 | 4200 | 3.70 | 15.54 |
| 5750150 | Polymer | 5.7 | 50 | 150 | 5000 | 3.70 | 18.50 |
| 905172 | Polymer | 9.0 | 51 | 72 | 3900 | 3.70 | 14.43 |
| 975290 | Polymer | 9.7 | 52 | 90 | 5200 | 3.70 | 19.24 |
| 545384 | Polymer | 5.4 | 53 | 84 | 2800 | 3.70 | 10.36 |
| 605482 | Polymer | 6.0 | 54 | 82 | 3000 | 3.70 | 11.10 |
| 8454122 | Polymer | 8.4 | 54 | 122 | 6000 | 3.70 | 22.20 |
| 5454132 | Polymer | 5.4 | 54 | 132 | 4400 | 3.70 | 16.28 |
| 605565 | Polymer | 6.0 | 55 | 65 | 2400 | 3.70 | 8.88 |
| 505585 | Polymer | 5.0 | 55 | 85 | 2500 | 3.70 | 9.25 |
| 7055168 | Polymer | 7.0 | 55 | 168 | 7500 | 3.70 | 27.75 |
| 1055271 | Polymer | 10.0 | 55 | 271 | 18000 | 3.70 | 66.60 |
| 855686 | Polymer | 8.5 | 56 | 86 | 5500 | 3.70 | 20.35 |
| 505795 | Polymer | 5.0 | 57 | 95 | 3000 | 3.70 | 11.10 |
| 605890 | Polymer | 6.0 | 58 | 90 | 3500 | 3.70 | 12.95 |
| 5458113 | Polymer | 5.4 | 58 | 113 | 4000 | 3.70 | 14.80 |
| 495948 | Polymer | 4.9 | 59 | 48 | 1600 | 3.70 | 5.92 |
| 675975 | Polymer | 6.7 | 59 | 75 | 3200 | 3.70 | 11.84 |
| 9459151 | Polymer | 9.4 | 59 | 151 | 10200 | 3.70 | 37.74 |
| 9059156 | Polymer | 9.0 | 59 | 156 | 10000 | 3.70 | 37.00 |
| 746058 | Polymer | 7.4 | 60 | 58 | 2900 | 3.70 | 10.73 |
| 606087 | Polymer | 6.0 | 60 | 87 | 3800 | 3.70 | 14.06 |
| 3660100 | Polymer | 3.6 | 60 | 100 | 2250 | 3.70 | 8.33 |
| 446166 | Polymer | 4.4 | 61 | 66 | 1800 | 3.70 | 6.66 |
| 706193 | Polymer | 7.0 | 61 | 93 | 4650 | 3.70 | 17.21 |
| 326275 | Polymer | 3.2 | 62 | 75 | 1400 | 3.70 | 5.18 |
| 6563100 | Polymer | 6.5 | 63 | 100 | 5000 | 3.70 | 18.50 |
| 1063108 | Polymer | 10.0 | 63 | 108 | 8000 | 3.70 | 29.60 |
| 6463203 | Polymer | 6.4 | 63 | 203 | 10000 | 3.70 | 37.00 |
| 676467 | Polymer | 6.7 | 64 | 67 | 3300 | 3.70 | 12.21 |
| 746469 | Polymer | 7.4 | 64 | 69 | 4000 | 3.70 | 14.80 |
| 906475 | Polymer | 9.0 | 64 | 75 | 5000 | 3.70 | 18.50 |
| 966570 | Polymer | 9.6 | 65 | 70 | 5000 | 3.70 | 18.50 |
| 8065132 | Polymer | 8.0 | 65 | 132 | 6000 | 3.70 | 22.20 |
| 1065156 | Polymer | 10.0 | 65 | 156 | 10000 | 3.70 | 37.00 |
| 7465160 | Polymer | 7.4 | 65 | 160 | 7800 | 3.70 | 28.86 |
| 546695 | Polymer | 5.4 | 66 | 95 | 3850 | 3.70 | 14.25 |
| 6766100 | Polymer | 6.7 | 66 | 100 | 5000 | 3.70 | 18.50 |
| 6767100 | Polymer | 6.7 | 67 | 100 | 5000 | 3.70 | 18.50 |
| 9067140 | Polymer | 9.0 | 67 | 140 | 10000 | 3.70 | 37.00 |
| 1067156 | Polymer | 10.0 | 67 | 156 | 10000 | 3.70 | 37.00 |
| 996848 | Polymer | 9.9 | 68 | 48 | 3300 | 3.70 | 12.21 |
| 486862 | Polymer | 4.8 | 68 | 62 | 2300 | 3.70 | 8.51 |
| 947070 | Polymer | 9.4 | 70 | 70 | 5000 | 3.70 | 18.50 |
| 607076 | Polymer | 6.0 | 70 | 76 | 3600 | 3.70 | 13.32 |
| 577089 | Polymer | 5.7 | 70 | 89 | 4000 | 3.70 | 14.80 |
| 8770171 | Polymer | 8.7 | 70 | 171 | 12600 | 3.70 | 46.62 |
| 6070271 | Polymer | 6.0 | 70 | 271 | 10000 | 3.70 | 37.00 |
| 7072196 | Polymer | 7.0 | 72 | 196 | 10000 | 3.70 | 37.00 |
| 487390 | Polymer | 4.8 | 73 | 90 | 3650 | 3.70 | 13.51 |
| 8773160 | Polymer | 8.7 | 73 | 160 | 12000 | 3.70 | 44.40 |
| 407595 | Polymer | 4.0 | 75 | 95 | 2850 | 3.70 | 10.55 |
| 8476181 | Polymer | 8.4 | 76 | 181 | 12300 | 3.70 | 45.51 |
| 5077123 | Polymer | 5.0 | 77 | 123 | 5000 | 3.70 | 18.50 |
| 5777146 | Polymer | 5.7 | 77 | 146 | 5500 | 3.70 | 20.35 |
| 9479105 | Polymer | 9.4 | 79 | 105 | 9200 | 3.70 | 34.04 |
| 1080120 | Polymer | 10.0 | 80 | 120 | 10000 | 3.70 | 37.00 |
| 5080156 | Polymer | 5.0 | 80 | 156 | 6000 | 3.70 | 22.20 |
| 6080230 | Polymer | 6.0 | 80 | 230 | 10500 | 3.70 | 38.85 |
| 6783143 | Polymer | 6.7 | 83 | 143 | 8300 | 3.70 | 30.71 |
| 8488120 | Polymer | 8.4 | 88 | 120 | 10000 | 3.70 | 37.00 |
| 5488130 | Polymer | 5.4 | 88 | 130 | 5300 | 3.70 | 19.61 |
| 1089182 | Polymer | 10.0 | 89 | 182 | 20000 | 3.70 | 74.00 |
| 9789230 | Polymer | 9.7 | 89 | 230 | 20300 | 3.70 | 75.11 |
| 849095 | Polymer | 8.4 | 90 | 95 | 8000 | 3.70 | 29.60 |
| 8790140 | Polymer | 8.7 | 90 | 140 | 10000 | 3.70 | 37.00 |
| 7490150 | Polymer | 7.4 | 90 | 150 | 10500 | 3.70 | 38.85 |
| 9790160 | Polymer | 9.7 | 90 | 160 | 13000 | 3.70 | 48.10 |
| 6792100 | Polymer | 6.7 | 92 | 100 | 8000 | 3.70 | 29.60 |
| 9094156 | Polymer | 9.0 | 94 | 156 | 14000 | 3.70 | 51.80 |
| 1094271 | Polymer | 10.0 | 94 | 271 | 27000 | 3.70 | 99.90 |
| 9096252 | Polymer | 9.0 | 96 | 252 | 21000 | 3.70 | 77.70 |
| 949893 | Polymer | 9.4 | 98 | 93 | 10500 | 3.70 | 38.85 |
| 809898 | Polymer | 8.0 | 98 | 98 | 9000 | 3.70 | 33.30 |
| 54100130 | Polymer | 5.4 | 100 | 130 | 8000 | 3.70 | 29.60 |
| 78101197 | Polymer | 7.8 | 101 | 197 | 20000 | 3.70 | 74.00 |
| 70103132 | Polymer | 7.0 | 103 | 132 | 11000 | 3.70 | 40.70 |
| 54103202 | Polymer | 5.4 | 103 | 202 | 10000 | 3.70 | 37.00 |
| 40104160 | Polymer | 4.0 | 104 | 160 | 7000 | 3.70 | 25.90 |
| 94110160 | Polymer | 9.4 | 110 | 160 | 15000 | 3.70 | 55.50 |
| 57112248 | Polymer | 5.7 | 112 | 248 | 15300 | 3.70 | 56.61 |
| 60121276 | Polymer | 6.0 | 121 | 276 | 22700 | 3.70 | 83.99 |
| 72122106 | Polymer | 7.2 | 122 | 106 | 10000 | 3.70 | 37.00 |
| 97122140 | Polymer | 9.7 | 122 | 140 | 20000 | 3.70 | 74.00 |
| 88122200 | Polymer | 8.8 | 122 | 200 | 25000 | 3.70 | 92.50 |
| 70129182 | Polymer | 7.0 | 129 | 182 | 20000 | 3.70 | 74.00 |
| 97136230 | Polymer | 9.7 | 136 | 230 | 30000 | 3.70 | 111.00 |
| 77157203 | Polymer | 7.7 | 157 | 203 | 23500 | 3.70 | 86.95 |
| 80324172 | Polymer | 8.0 | 324 | 172 | 50000 | 3.70 | 185.00 |
