Lithium-ion Cells
Lithium-ion Battery

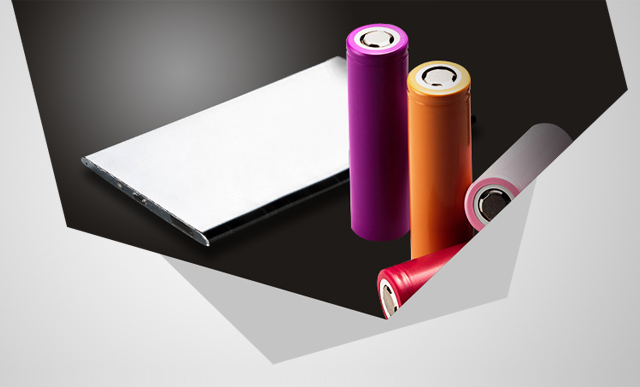

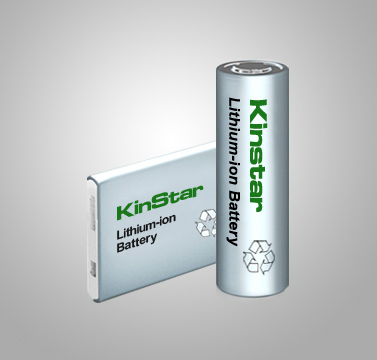

Lithium-ion battery cells has two different shapes - cylindrical and prismatic. Cylindrical cells has standard models such as 18650, 18500, 14500, 26650... Prismatic cells are going to be replaced by Li-Polymer cells, standard models 103450, 503048...Lithium-ion batteries widely used on E-Bikes, Laptops, Power Tools, Mobile Phone, Power Bank, Garden Tools, Vacuum Cleaner and so on...
High energy density
The world highest energy density Lithium-ion cylindrical 18650 batteries are made by Panasonic - 243Wh/KG (Panasonic NCR18650B 3400mAh 3.6V); 693Wh/L (Panasonic NCR18650GA 3500mAh 3.6V).
High output
Lithium-ion single cells with high output voltage from 4.2V till 2.5V; And high output current from 10C to 15C. E.G. Samsung INR18650-15M continuous discharge current 23A(15C); Sony VTC4, VTC5 and VTC6 can continuous discharge at 30A.
Standard size
18650 is the world-renowned standard model of Lithium-ion battery cell - diameter 18mm and height 65mm. Other standard models are 14500, 18500, 26650...
Long service life
Cycle life of qualified Lithium-ion cells should over 300 cycles(Remaining 80% nominal capacity), but real service life up to 500 ~ 800 cycles.
Cylindrical Cell Models & Specifications
| Cell Model | Type | Diameter (mm) | Height (mm) | Nominal Capacity(mAh) | Nominal Voltage(V) | Charging Voltage(V) | Energy (Wh) |
| INR10180E | Cylindrical | 10 | 18 | 100 | 3.70 | 4.20 | 0.37 |
| INR10220E | Cylindrical | 10 | 22 | 130 | 3.70 | 4.20 | 0.48 |
| INR10250E | Cylindrical | 10 | 25 | 150 | 3.70 | 4.20 | 0.56 |
| INR10280E | Cylindrical | 10 | 28 | 180 | 3.70 | 4.20 | 0.67 |
| INR10440E | Cylindrical | 10 | 44 | 350 | 3.70 | 4.20 | 1.30 |
| INR14250E | Cylindrical | 14 | 25 | 280 | 3.70 | 4.20 | 1.04 |
| INR14430E | Cylindrical | 14 | 43 | 650 | 3.70 | 4.20 | 2.40 |
| INR14500E | Cylindrical | 14 | 50 | 800 | 3.70 | 4.20 | 2.96 |
| INR14650E | Cylindrical | 14 | 65 | 1100 | 3.70 | 4.20 | 4.07 |
| INR16280E | Cylindrical | 16 | 28 | 600 | 3.70 | 4.20 | 2.22 |
| INR16340E | Cylindrical | 16 | 34 | 700 | 3.70 | 4.20 | 2.59 |
| INR16500E | Cylindrical | 16 | 50 | 1200 | 3.70 | 4.20 | 4.44 |
| INR17335E | Cylindrical | 17 | 33 | 700 | 3.70 | 4.20 | 2.59 |
| INR17360E | Cylindrical | 17 | 36 | 750 | 3.70 | 4.20 | 2.78 |
| INR17500E | Cylindrical | 17 | 50 | 1100 | 3.70 | 4.20 | 4.07 |
| INR17650E | Cylindrical | 17 | 65 | 1400 | 3.70 | 4.20 | 5.18 |
| INR18350ME | Cylindrical | 18 | 35 | 850 | 3.70 | 4.20 | 3.15 |
| INR18490HE | Cylindrical | 18 | 49 | 1400 | 3.70 | 4.20 | 5.18 |
| INR18500UE | Cylindrical | 18 | 50 | 1600 | 3.60 | 4.20 | 5.76 |
| INR18630ME | Cylindrical | 18 | 63 | 1900 | 3.60 | 4.20 | 6.84 |
| INR18650ME | Cylindrical | 18 | 65 | 2000 | 3.60 | 4.20 | 7.20 |
| INR18650HE | Cylindrical | 18 | 65 | 2200 | 3.60 | 4.20 | 7.92 |
| INR18650SE | Cylindrical | 18 | 65 | 2500 | 3.60 | 4.20 | 9.00 |
| INR18650UE | Cylindrical | 18 | 65 | 2600 | 3.60 | 4.20 | 9.36 |
| INR18650XE | Cylindrical | 18 | 65 | 3000 | 3.60 | 4.20 | 10.8 |
| INR22430HE | Cylindrical | 22 | 43 | 1900 | 3.60 | 4.20 | 6.84 |
| INR26650HE | Cylindrical | 26 | 65 | 4500 | 3.60 | 4.20 | 16.2 |
Prismatic Cell Models & Specifications
| Cell Model | Type | Thickness (mm) | Width (mm) | Height (mm) | Nominal Capacity(mAh) | Nominal Voltage(V) | Energy (Wh) |
| ICP053048 | Prismatic | 5.0 | 30 | 48 | 800 | 3.70 | 2.96 |
| ICP603345 | Prismatic | 6.0 | 33 | 45 | 970 | 3.70 | 3.59 |
| ICP833440 | Prismatic | 8.3 | 34 | 40 | 1100 | 3.70 | 4.07 |
| ICP053442 | Prismatic | 5.0 | 34 | 42 | 800 | 3.70 | 2.96 |
| ICP043446 | Prismatic | 4.0 | 34 | 46 | 700 | 3.70 | 2.59 |
| ICP703448 | Prismatic | 7.0 | 34 | 48 | 1200 | 3.70 | 4.44 |
| ICP433450 | Prismatic | 4.3 | 34 | 50 | 850 | 3.70 | 3.15 |
| ICP453450 | Prismatic | 4.5 | 34 | 50 | 900 | 3.70 | 3.33 |
| ICP053450 | Prismatic | 5.0 | 34 | 50 | 1000 | 3.70 | 3.70 |
| ICP523450 | Prismatic | 5.2 | 34 | 50 | 1050 | 3.70 | 3.89 |
| ICP553450 | Prismatic | 5.5 | 34 | 50 | 1100 | 3.70 | 4.07 |
| ICP063450 | Prismatic | 6.0 | 34 | 50 | 1150 | 3.70 | 4.26 |
| ICP083450 | Prismatic | 8.0 | 34 | 50 | 1500 | 3.70 | 5.55 |
| ICP103450 | Prismatic | 10.0 | 34 | 50 | 1800 | 3.70 | 6.66 |
| ICP563545 | Prismatic | 5.6 | 35 | 45 | 970 | 3.70 | 3.59 |
| ICP583637 | Prismatic | 5.8 | 36 | 37 | 850 | 3.70 | 3.15 |
| ICP953753 | Prismatic | 9.5 | 37 | 53 | 1900 | 3.70 | 7.03 |
| ICP663770 | Prismatic | 6.6 | 37 | 70 | 2000 | 3.70 | 7.40 |
| ICP583833 | Prismatic | 5.8 | 38 | 33 | 750 | 3.70 | 2.78 |
| ICP663836 | Prismatic | 6.6 | 38 | 36 | 1000 | 3.70 | 3.70 |
| ICP443845 | Prismatic | 4.4 | 38 | 45 | 750 | 3.70 | 2.78 |
| ICP463846 | Prismatic | 4.6 | 38 | 46 | 850 | 3.70 | 3.15 |
| ICP463850 | Prismatic | 4.6 | 38 | 50 | 950 | 3.70 | 3.52 |
| ICP583850 | Prismatic | 5.8 | 38 | 50 | 1200 | 3.70 | 4.44 |
| ICP603855 | Prismatic | 6.0 | 38 | 55 | 1420 | 3.70 | 5.25 |
| ICP443856 | Prismatic | 4.4 | 38 | 56 | 1000 | 3.70 | 3.70 |
| ICP463858 | Prismatic | 4.6 | 38 | 58 | 1100 | 3.70 | 4.07 |
| ICP603859 | Prismatic | 6.0 | 38 | 59 | 1500 | 3.70 | 5.55 |
| ICP113925 | Prismatic | 11.0 | 39 | 25 | 750 | 3.70 | 2.78 |
| ICP663960 | Prismatic | 6.6 | 39 | 60 | 1800 | 3.70 | 6.66 |
| ICP663962 | Prismatic | 6.6 | 39 | 62 | 1800 | 3.70 | 6.66 |
| ICP484031 | Prismatic | 4.8 | 40 | 31 | 620 | 3.70 | 2.29 |
| ICP534041 | Prismatic | 5.3 | 40 | 41 | 1000 | 3.70 | 3.70 |
| ICP614042 | Prismatic | 6.1 | 40 | 42 | 1100 | 3.70 | 4.07 |
| ICP454046 | Prismatic | 4.5 | 40 | 46 | 950 | 3.70 | 3.52 |
| ICP054046 | Prismatic | 5.0 | 40 | 46 | 1050 | 3.70 | 3.89 |
| ICP454047 | Prismatic | 4.5 | 40 | 47 | 950 | 3.70 | 3.52 |
| ICP044054 | Prismatic | 4.0 | 40 | 54 | 1000 | 3.70 | 3.70 |
| ICP404057 | Prismatic | 4.0 | 40 | 57 | 950 | 3.70 | 3.52 |
| ICP594160 | Prismatic | 5.9 | 41 | 60 | 1750 | 3.70 | 6.48 |
| ICP444251 | Prismatic | 4.4 | 42 | 51 | 1000 | 3.70 | 3.70 |
| ICP364260 | Prismatic | 3.6 | 42 | 60 | 1000 | 3.70 | 3.70 |
| ICP524260 | Prismatic | 5.2 | 42 | 60 | 1500 | 3.70 | 5.55 |
| ICP484261 | Prismatic | 4.8 | 42 | 61 | 1300 | 3.70 | 4.81 |
| ICP474353 | Prismatic | 4.7 | 43 | 53 | 1200 | 3.70 | 4.44 |
| ICP474354 | Prismatic | 4.7 | 43 | 54 | 1250 | 3.70 | 4.63 |
| ICP534360 | Prismatic | 5.3 | 43 | 60 | 1500 | 3.70 | 5.55 |
| ICP514447 | Prismatic | 5.1 | 44 | 47 | 1200 | 3.70 | 4.44 |
| ICP424455 | Prismatic | 4.2 | 44 | 55 | 1150 | 3.70 | 4.26 |
| ICP414461 | Prismatic | 4.1 | 44 | 61 | 1300 | 3.70 | 4.81 |
| ICP544461 | Prismatic | 5.4 | 44 | 61 | 1600 | 3.70 | 5.92 |
| ICP064461 | Prismatic | 6.0 | 44 | 61 | 1800 | 3.70 | 6.66 |
| ICP434462 | Prismatic | 4.3 | 44 | 62 | 1300 | 3.70 | 4.81 |
| ICP554463 | Prismatic | 5.5 | 44 | 63 | 1700 | 3.70 | 6.29 |
| ICP514470 | Prismatic | 5.1 | 44 | 70 | 1800 | 3.70 | 6.66 |
| ICP534553 | Prismatic | 5.3 | 45 | 53 | 1550 | 3.70 | 5.74 |
| ICP504641 | Prismatic | 5.0 | 46 | 41 | 950 | 3.70 | 3.52 |
| ICP464655 | Prismatic | 4.6 | 46 | 55 | 1450 | 3.70 | 5.37 |
| ICP484656 | Prismatic | 4.8 | 46 | 56 | 1470 | 3.70 | 5.44 |
| ICP574845 | Prismatic | 5.7 | 48 | 45 | 1450 | 3.70 | 5.37 |
| ICP564861 | Prismatic | 5.6 | 48 | 61 | 1850 | 3.70 | 6.85 |
| ICP514948 | Prismatic | 5.1 | 49 | 48 | 1450 | 3.70 | 5.37 |
| ICP525060 | Prismatic | 5.2 | 50 | 60 | 2100 | 3.70 | 7.77 |
| ICP415063 | Prismatic | 4.1 | 50 | 63 | 1400 | 3.70 | 5.18 |
| ICP405067 | Prismatic | 4.0 | 50 | 67 | 1500 | 3.70 | 5.55 |
| ICP415069 | Prismatic | 4.1 | 50 | 69 | 1700 | 3.70 | 6.29 |
| ICP485072 | Prismatic | 4.8 | 50 | 72 | 1900 | 3.70 | 7.03 |
| ICP555144 | Prismatic | 5.5 | 51 | 44 | 1400 | 3.70 | 5.18 |
| ICP515148 | Prismatic | 5.1 | 51 | 48 | 1650 | 3.70 | 6.11 |
| ICP435155 | Prismatic | 4.3 | 51 | 55 | 1300 | 3.70 | 4.81 |
| ICP455256 | Prismatic | 4.5 | 52 | 56 | 1500 | 3.70 | 5.55 |
| ICP595265 | Prismatic | 5.9 | 52 | 65 | 2350 | 3.70 | 8.70 |
| ICP555451 | Prismatic | 5.5 | 54 | 51 | 1800 | 3.70 | 6.66 |
| ICP495452 | Prismatic | 4.9 | 54 | 52 | 1600 | 3.70 | 5.92 |
| ICP535455 | Prismatic | 5.3 | 54 | 55 | 1800 | 3.70 | 6.66 |
| ICP525457 | Prismatic | 5.2 | 54 | 57 | 1950 | 3.70 | 7.22 |
| ICP455556 | Prismatic | 4.5 | 55 | 56 | 1600 | 3.70 | 5.92 |
| ICP585571 | Prismatic | 5.8 | 55 | 71 | 3100 | 3.70 | 11.5 |
| ICP415870 | Prismatic | 4.1 | 58 | 70 | 1800 | 3.70 | 6.66 |
| ICP416067 | Prismatic | 4.1 | 60 | 67 | 2000 | 3.70 | 7.40 |
