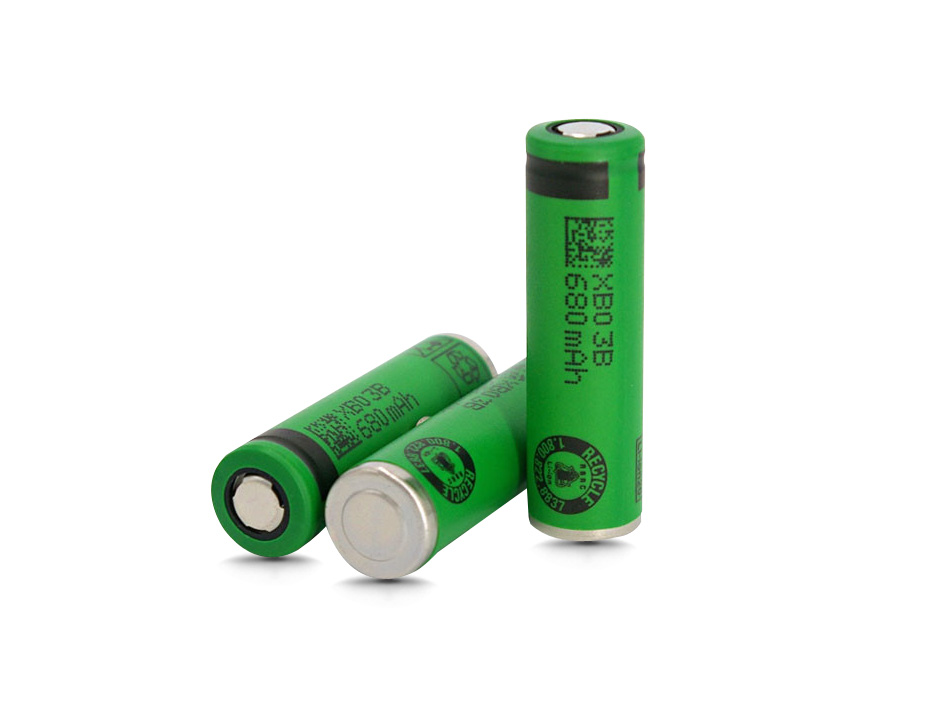

Sony 14500 AA 680mAh 2A Battery - US14500VR2

Sony VR2 14500 680mAh 2A Battery - US14500VR2, Grade A Lithium-ion 14500 cell. It can power a lot of devices like LED flashlight and measuring devices.

Sony丨Murata 14500 VR2 AA 680mAh Battery - US14500VR2

Sony丨Murata 14500 VR2 AA 680mAh Battery - US14500VR2

  • Cell model Sony US14500VR2
  • Rated capacity 715mAh
  • Nominal capacity 680mAh
  • Nominal voltage 3.6V
  • Max. continuous discharge current 2A
  • Cell specification Datasheet download
  • Applications Portable devices, LED flashlight, M2M devices, Measuring devices
ItemsSpecificationsNotes
Nominal capacity680mAh0.2C discharge, 3.0V cut
Nominal voltage3.6V
Nominal energy2.45WhCapacity(Ah) × Voltage(V)
Charging voltage4.20V
Charging current136mA 丨2AStandard丨Rapid
Charging time6.0 hours 丨2.5 hoursStandard丨Rapid
Charging methodCC - CVConstant current, constant voltage
Continuous discharge current136mA 丨2AStandard丨Maximum
Peak discharge current3AWithin a short time
Discharge end voltage3.0VDischarge cut-off voltage
Dimensions14mm丨49.1mmDiameter丨Height
Typical weight19.2g0.68 oz
Charge temperature range+0 ~ +60°C+50 ~ 110°F
Discharge temperature range-10 ~ +45°C-4 ~ +140°F
Storage temperature-10 ~ +45°CWithin 3 months
