Excellent battery efficiency

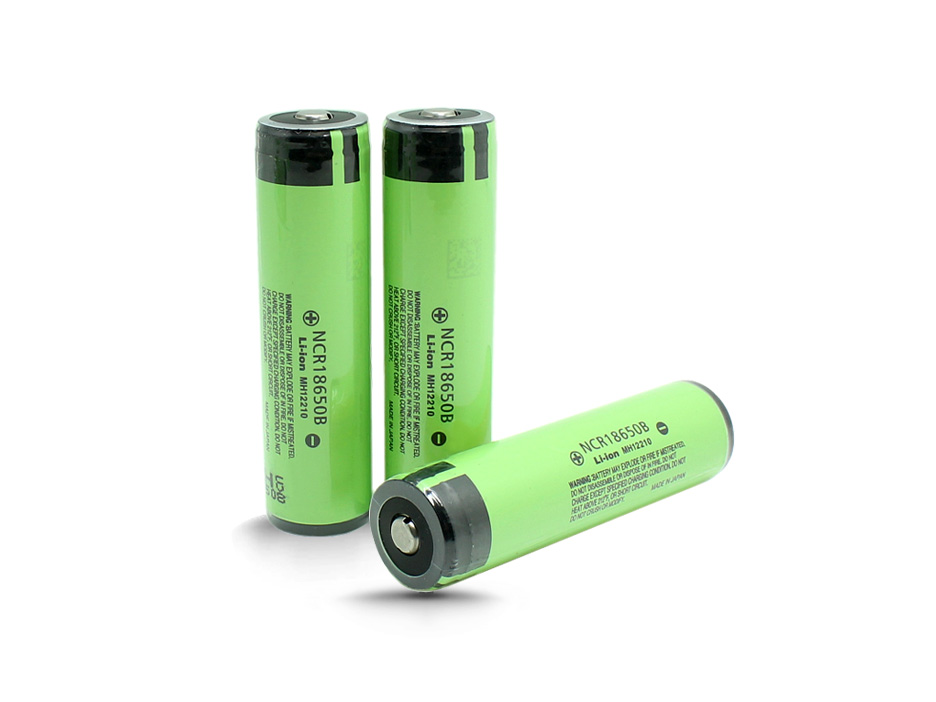

For maximum lasting time, Panasonic NCR18650B 3400mAh rechargeable battery demonstrably have maximum energy density with small size and low weight - guaranteeing maximum output power.
Solid button top design
Protruding positive terminal creates solid contact when connecting batteries in series or installing in equipment with flat circuit board that are incompatible with flat top batteries.
Fast charge and no memory effect
Panasonic 18650B 3400mAh battery can be full charged in about 4 hours, faster than Ni-MH, Ni-Cd or Lead acid batteries. Durable energy storage without memory effect and with minimal self-discharge.
Long service life
The Protection Circuit Board (PCB) offers maximum protection against overcharging, overdischarging, overcurrent, overheating and short circuits as well as extending the service life of the battery pack.
|Nominal capacity||3350mAh||Reference only|
|Nominal voltage||3.6V||0.65A discharge @ 25°C|
|Nominal energy||12.06Wh||Capacity(Ah) × Voltage(V)|
|Charging voltage||4.20 ± 0.03V|
|Charging current||670mA 丨1620mA||Standard丨Rapid|
|Charging time||6.0 hours 丨4.0 hours||Standard丨Rapid|
|Charging method||CC - CV||Constant current, constant voltage|
|Continuous discharge current||670mA 丨3000mA||Standard丨Maximum|
|Peak discharge current||5000mA||Within a short time|
|Discharge end voltage||2.75V||Discharge cut-off voltage|
|Typical weight||56g||1.98 oz|
|Charge temperature range||+10 ~ +45°C||+50 ~ 110°F|
|Discharge temperature range||-20 ~ +60°C||-4 ~ +140°F|
|Storage temperature||-20 ~ +45°C||Within 3 months|
