Excellent battery efficiency

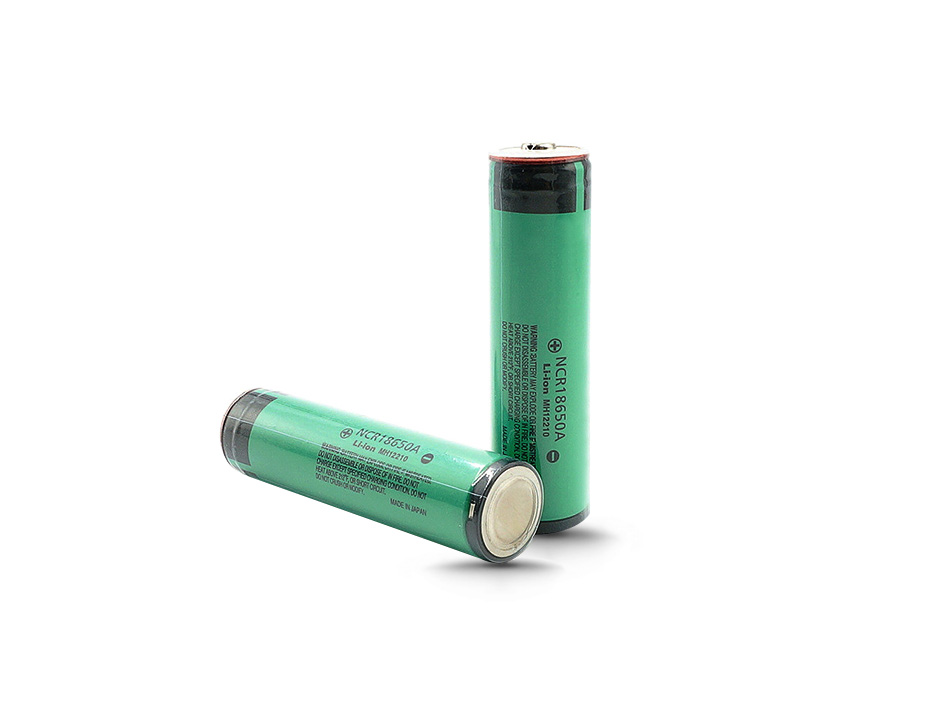

For maximum lasting time, Panasonic Li-ion NCR18650A 3100mAh 3.6V rechargeable battery demonstrably have maximum energy density with small size and low weight - guaranteeing maximum output power.
Solid button top design
Protruding positive terminal creates solid contact when connecting batteries in series or installing in equipment with flat circuit board that are incompatible with flat top batteries.
Fast charge and no memory effect
Panasonic 18650A 3100mAh battery can be full charged in about 4 hours, faster than Ni-MH, Ni-Cd or Lead acid batteries. Durable energy storage without memory effect and with minimal self-discharge.
Long service life
The Protection Circuit Board (PCB) offers maximum protection against overcharging, overdischarging, overcurrent, overheating and short circuits as well as extending the service life of the battery pack.
| Items | Specifications | Notes |
| Nominal capacity | 3100mAh | Reference only |
| Nominal voltage | 3.6V | 0.59A discharge @ 25°C |
| Nominal energy | 11.16Wh | Capacity(Ah) × Voltage(V) |
| Charging voltage | 4.20 ± 0.03V | |
| Charging current | 590mA 丨1475mA | Standard丨Rapid |
| Charging time | 6.0 hours 丨4.0 hours | Standard丨Rapid |
| Charging method | CC - CV | Constant current, constant voltage |
| Continuous discharge current | 590mA 丨3000mA | Standard丨Maximum |
| Peak discharge current | 5000mA | Within a short time |
| Discharge end voltage | 2.75V | Discharge cut-off voltage |
| Dimensions | 19.5mm丨70mm | Diameter丨Height |
| Typical weight | 56g | 1.98 oz |
| Charge temperature range | +10 ~ +45°C | +50 ~ 110°F |
| Discharge temperature range | -20 ~ +60°C | -4 ~ +140°F |
| Storage temperature | -20 ~ +45°C | Within 3 months |
