Excellent battery efficiency

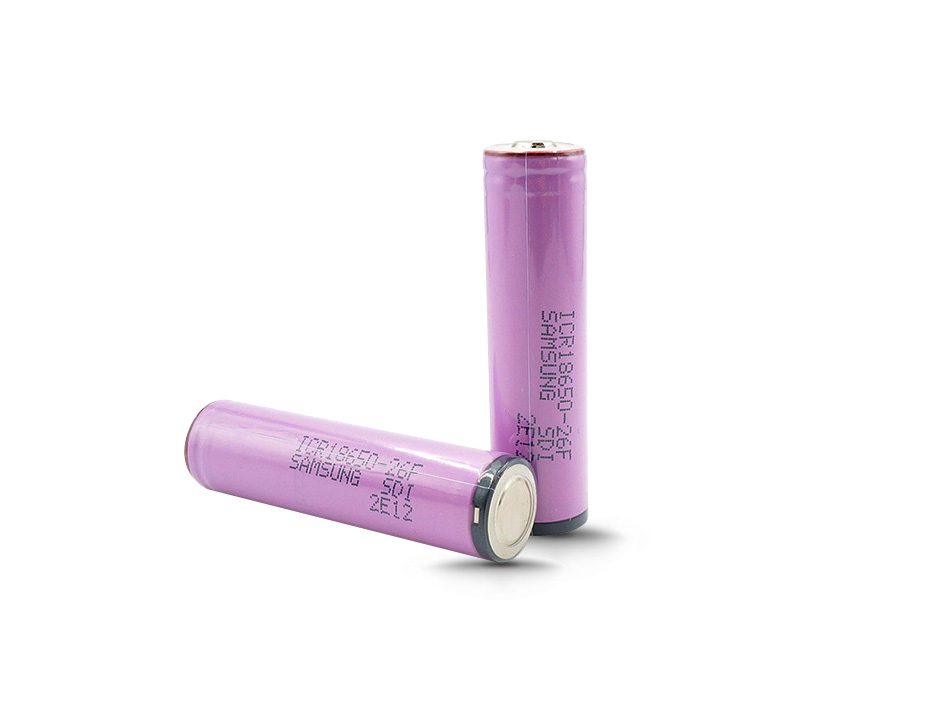

For maximum lasting time, Samsung Li-ion 3.7V 2600mAh rechargeable battery demonstrably have maximum energy density with small size and low weight - guaranteeing maximum output power.
Solid button top design
Protruding positive terminal creates solid contact when connecting batteries in series or installing in equipment with flat circuit board that are incompatible with flat top batteries.
Fast charge and no memory effect
Samsung ICR18650-26F 2600mAh battery can be full charged in about 4 hours, faster than Ni-MH, Ni-Cd or Lead acid batteries. Durable energy storage without memory effect and with minimal self-discharge.
Long service life
The Protection Circuit Board (PCB) offers maximum protection against overcharging, overdischarging, overcurrent, overheating and short circuits as well as extending the service life of the battery pack.
| Items | Specifications | Notes |
| Nominal capacity | 2600mAh | 0.52A discharge @ 25°C |
| Nominal voltage | 3.7V | Average operating voltage |
| Nominal energy | 9.62Wh | Capacity(Ah) × Voltage(V) |
| Charging voltage | 4.20 ± 0.03V | |
| Charging current | 520mA 丨1300mA | Standard丨Rapid |
| Charging time | 6.0 hours 丨4.0 hours | Standard丨Rapid |
| Charging method | CC - CV | Constant current, constant voltage |
| Continuous discharge current | 520mA 丨3000mA | Standard丨Maximum |
| Peak discharge current | 5000mA | Within a short time |
| Discharge end voltage | 2.75V | Discharge cut-off voltage |
| Dimensions | 19.5mm丨70mm | Diameter丨Height |
| Typical weight | 56g | 1.98 oz |
| Charge temperature range | +10 ~ +45°C | +50 ~ 110°F |
| Discharge temperature range | -20 ~ +60°C | -4 ~ +140°F |
| Storage temperature | -20 ~ +45°C | Within 3 months |
