High capacity and energy density

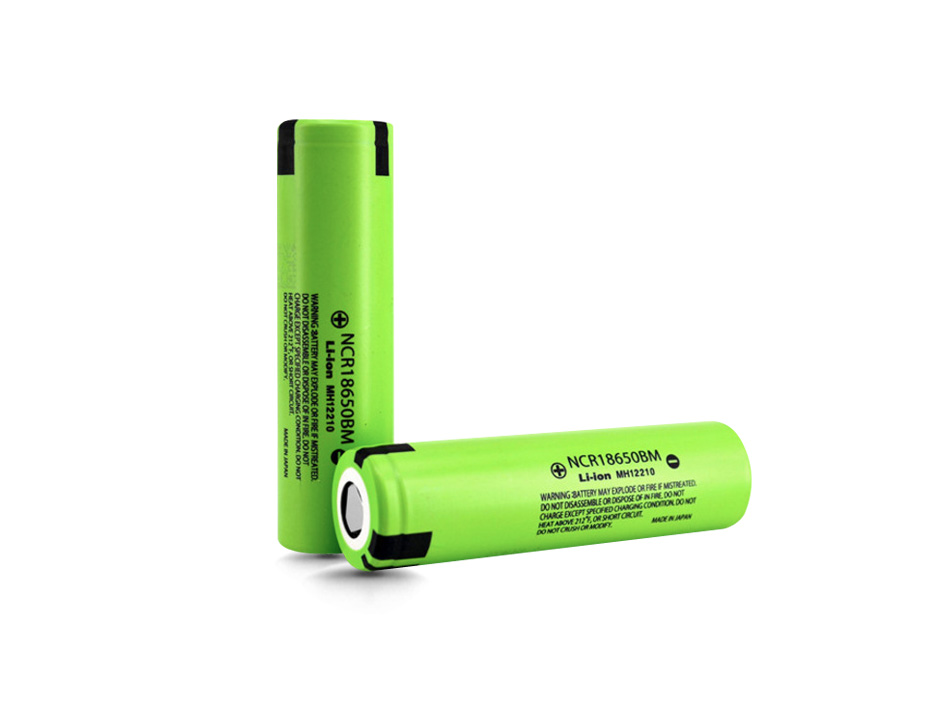

For providing stable power to devices, Panasonic NCR18650BM 3200mAh 3.63A rechargeable battery offer 3.6V average operating voltage in order to guarantee maximum output power.
High discharge performance
Panasonic NCR18650BM 3200mAh 3.63A battery provide powerful and constant power to the device or equipment, voltage drop less with load, the discharge curve is quiet stable from full to empty.
Applications widely
Panasonic NCR18650BM 3200mAh 3.63A battery can be widely use to all products desire high capacity for longest running time. For example, LED flashlights, toys and electronics power devices.
Reliable and safe
Panasonic and Sanyo are world famous brand, also the leader of Li-ion 18650 battery technology, provide only reliable batteries, it is 100% safe by using the battery according to the cell datasheet.
| Items | Specifications | Notes |
| Nominal capacity | 3180mAh | Reference only |
| Nominal voltage | 3.6V | 0.606A discharge at 25°C |
| Nominal energy | 11.45Wh | Capacity(Ah) × Voltage(V) |
| Charging voltage | 4.20V | |
| Charging current | 606mA 丨909mA | Standard丨Rapid |
| Charging time | 6.0 hours 丨4.0 hours | Standard丨Rapid |
| Charging method | CC - CV | Constant current, constant voltage |
| Continuous discharge current | 606mA 丨3.63A | Standard丨Maximum |
| Peak discharge current | 5A | Within a short time |
| Discharge end voltage | 2.5V | Discharge cut-off voltage |
| Dimensions | 18.5mm丨65.2mm | Diameter丨Height |
| Typical weight | 49.5g | 1.74 oz |
| Charge temperature range | +0 ~ +60°C | +50 ~ 110°F |
| Discharge temperature range | -10 ~ +45°C | -4 ~ +140°F |
| Storage temperature | -10 ~ +45°C | Within 3 months |
