Excellent battery efficiency

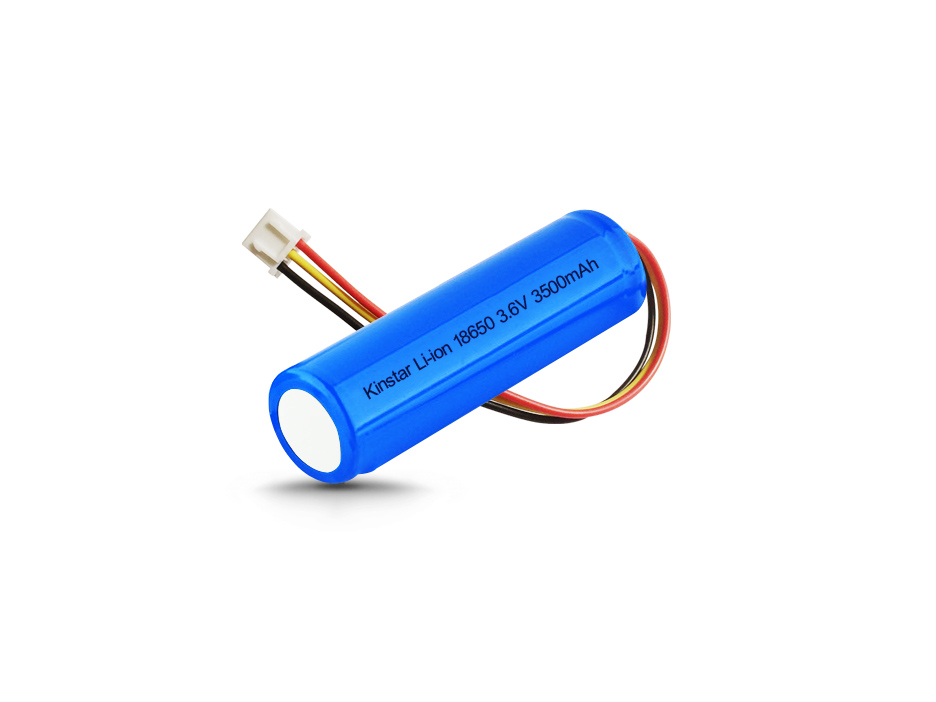

For maximum lasting time, KinStar Li-ion 3.6V 3500mAh rechargeable battery demonstrably have maximum energy density with small size and low weight - guaranteeing maximum output power.
Fast charge and no memory effect
KinStar 3.6V 3500mAh battery pack can be full charged in about 3.5 hours, faster than Ni-MH, Ni-Cd or Lead acid batteries. Durable energy storage without memory effect and with minimal self-discharge.
Long service life
The Protection Circuit Board(PCB) offers maximum protection against overcharging, overdischarging, overcurrent, overheating and short circuits as well as extending the service life of the battery pack.
Environment friendly and easy handling
Lithium-ion batteries are clean energy provider with staying power and zero emission. It is simple to handle them without any danger, if read instruction before using the batteries.
| Items | Specifications | Notes |
| Nominal capacity | 3500mAh | Reference only |
| Nominal voltage | 3.6V | 0.67A discharge @ 25°C |
| Nominal energy | 12.6Wh | Capacity(Ah) × Voltage(V) |
| Charging voltage | 4.20 ± 0.03V | |
| Charging current | 380mA 丨1700mA | Standard丨Rapid |
| Charging time | 6.0 hours 丨3.5 hours | Standard丨Rapid |
| Charging method | CC - CV | Constant current, constant voltage |
| Continuous discharge current | 1700mA 丨3000mA | Standard丨Maximum |
| Peak discharge current | 6000mA | Within a short time |
| Discharge end voltage | 2.75V | Discharge cut-off voltage |
| Dimensions | 19.5mm丨70mm | Diameter丨Height |
| Typical weight | 56g | 1.98 oz |
| Charge temperature range | +10 ~ +45°C | +50 ~ 110°F |
| Discharge temperature range | -20 ~ +60°C | -4 ~ +140°F |
| Storage temperature | -20 ~ +45°C | Within 3 months |
