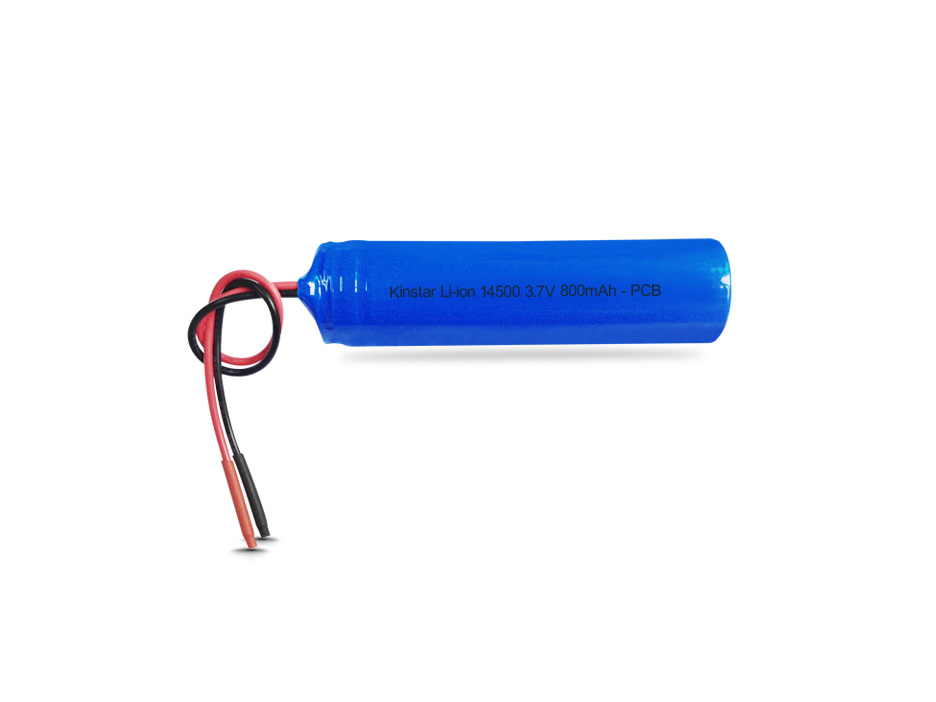

3.7V 800mAh Li-ion 14500 Battery with PCB & wires

Excellent battery efficiency
For maximum lasting time, KinStar 3.7V 800mAh Li-ion rechargeable battery demonstrably have maximum energy density with small size and low weight - guaranteeing maximum output power.
Fast charge and no memory effect
KinStar 3.7V 800mAh battery pack can be full charged in about 5 hours, faster than Ni-MH, Ni-Cd or Lead acid batteries. Durable energy storage without memory effect and with minimal self-discharge.
Long service life
The Protection Circuit Board(PCB) offers maximum protection against overcharging, overdischarging, overcurrent, overheating and short circuits as well as extending the service life of the battery pack.
Environment friendly and easy handling
Lithium-ion batteries are clean energy provider with staying power and zero emission. It is simple to handle them without any danger, if read instruction before using the batteries.

Items	Specifications	Notes
Nominal capacity	800mAh	0.16A discharge at 25°C
Nominal voltage	3.7V	Average operating voltage
Nominal energy	2.96Wh	Capacity(Ah) × Voltage(V)
Charging voltage	4.20 ± 0.03V
Charging current	200mA 丨800mA	Standard丨Rapid
Charging time	5.0 hours 丨2.0 hours	Standard丨Rapid
Charging method	CC - CV	Constant current, constant voltage
Continuous discharge current	160mA 丨800mA	Standard丨Maximum
Peak discharge current	3A	Within a short time
Discharge end voltage	2.75V	Discharge cut-off voltage
Dimensions	15.5mm丨71mm	Diameter丨Height
Typical weight	26g	0.92 oz
Charge temperature range	+10 ~ +45°C	+50 ~ 110°F
Discharge temperature range	-20 ~ +60°C	-4 ~ +140°F
Storage temperature	-20 ~ +45°C	Within 3 months
