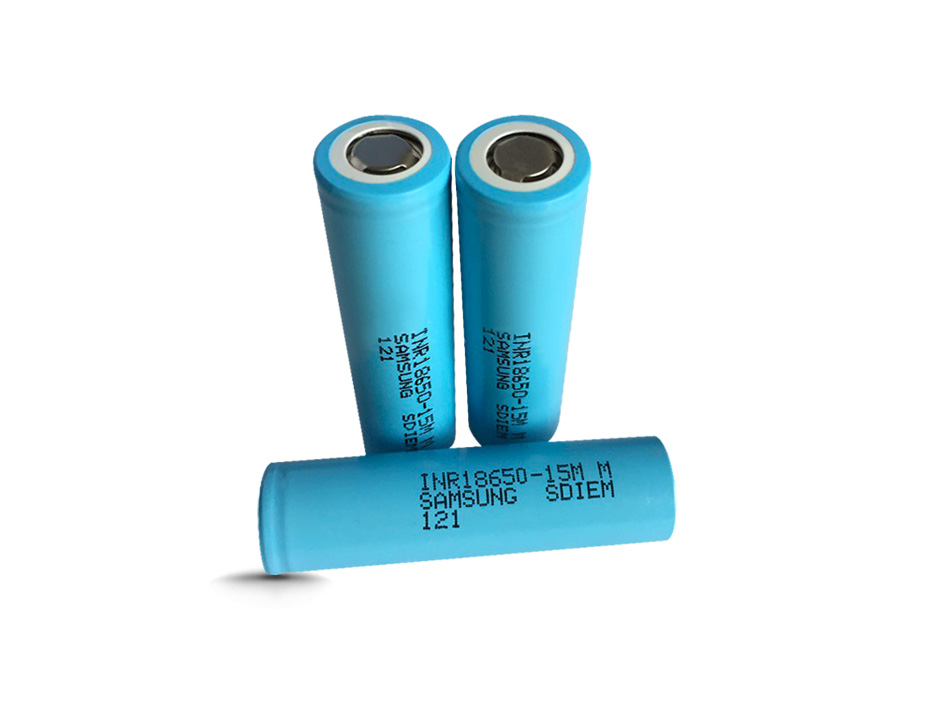

Samsung 15M 18650 1500mAh 23A Battery

Samsung INR18650 15M 1500mAh Battery - Nominal voltage 3.6V; Nominal capacity 1500mAh; Maximum discharge current 23A; Discharge cut-off voltage 2.5V.

  • Samsung 15M
Samsung 15M 18650 1500mAh 23A Battery - Grade A

Samsung 15M 18650 1500mAh 23A Battery - Grade A

  • Cell model Samsung INR18650-15M
  • Typical capacity 1500mAh
  • Minimum capacity 1450mAh
  • Nominal voltage 3.6V
  • Max. continuous discharge current 23A
  • Cell specification Datasheet download
  • Applications Power tools, Hoverboard, E-bikes, Electirc scooters
ItemsSpecificationsNotes
Nominal capacity1500mAh0.2C discharge, 2.5V cut-off
Nominal voltage3.6V1C discharge
Nominal energy5.4WhCapacity(Ah) × Voltage(V)
Charging voltage4.20 ± 0.05V
Charging current750mA 丨4000mAStandard丨Rapid
Charging time2.5 hours 丨40 minsStandard丨Rapid
Charging methodCC - CVConstant current, constant voltage
Continuous discharge current750mA 丨23AStandard丨Maximum
Peak discharge current30AWithin a short time
Discharge end voltage2.5VDischarge cut-off voltage
Dimensions18.15mm丨64.85mmDiameter丨Height
Typical weight45g1.59 oz
Charge temperature range+0 ~ +60°C+50 ~ 110°F
Discharge temperature range-10 ~ +45°C-4 ~ +140°F
Storage temperature-10 ~ +45°CWithin 3 months
