2C continuous discharge current

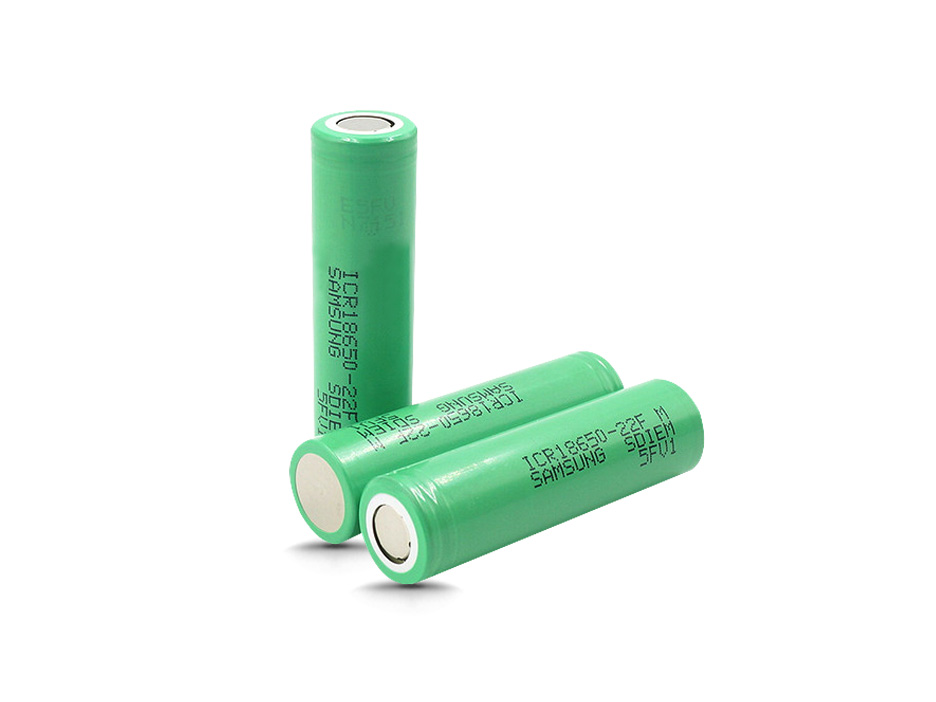

Samsung ICR18650-22F 2200mAh battery maximum continuous discharge current 4.4A, widely use on E-bikes, Electirc scooters, LED flashlight
High discharge performance
Samsung ICR18650-22F battery provide powerful and constant power to the device or equipment, the discharge curve is quiet beautiful with high current load.
Fast charge and no memory effect
Maximum continuous charge current 2.2A, can be full charged in about 2.5 hours. Samsung Li-ion 18650 battery has no memory effect and with minimal self-discharge.
Reliable and safe
Samsung SDI is the leader of Li-ion 18650 battery technology, provide only reliable batteries, it is 100% safe by using the battery according to the cell datasheet.
| Items | Specifications | Notes |
| Nominal capacity | 2200mAh | 0.2C discharge, 2.75V cut-off |
| Nominal voltage | 3.6V | 0.2C discharge |
| Nominal energy | 7.92Wh | Capacity(Ah) × Voltage(V) |
| Charging voltage | 4.20 ± 0.05V | |
| Charging current | 1100mA 丨2200mA | Standard丨Rapid |
| Charging time | 3.0 hours 丨2.5 hours | Standard丨Rapid |
| Charging method | CC - CV | Constant current, constant voltage |
| Continuous discharge current | 440mA 丨4.4A | Standard丨Maximum |
| Peak discharge current | 5A | Within a short time |
| Discharge end voltage | 2.75V | Discharge cut-off voltage |
| Dimensions | 18.4mm丨65mm | Diameter丨Height |
| Typical weight | 44.5g | 1.57 oz |
| Charge temperature range | +0 ~ +60°C | +50 ~ 110°F |
| Discharge temperature range | -10 ~ +45°C | -4 ~ +140°F |
| Storage temperature | -10 ~ +45°C | Within 3 months |
