2C continuous discharge current

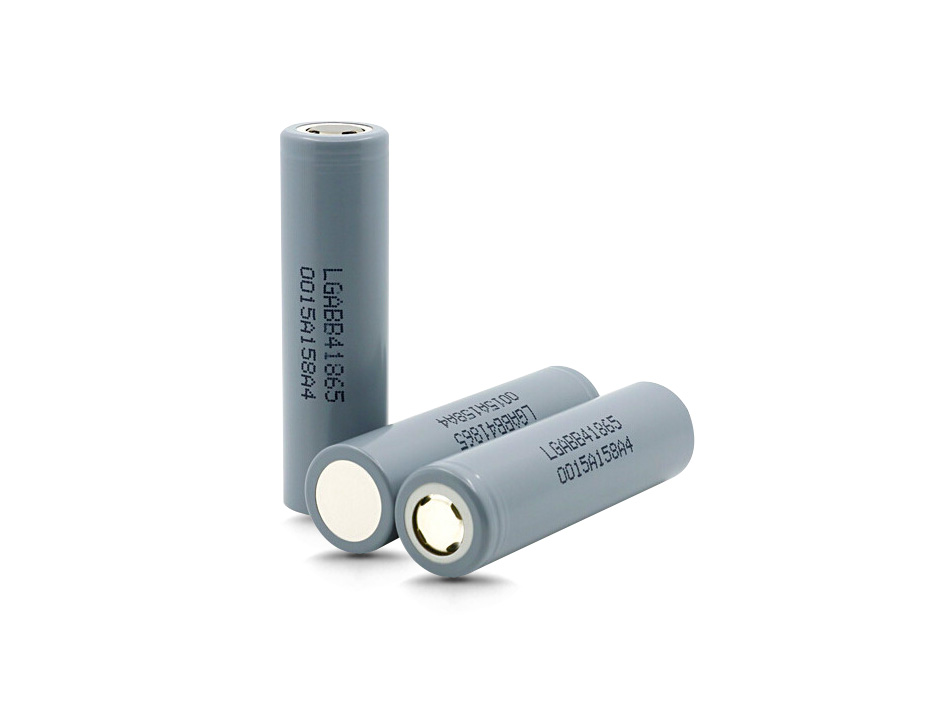

LG ICR18650B4 2600mAh battery maximum discharge current 5A, widely use on LED flashlights; Toys Electronics power devices.
High discharge performance
LG ICR18650B4 battery provide powerful and constant power to the device or equipment, the discharge curve is quiet beautiful with high current load.
Fast charge and no memory effect
Maximum continuous charge current 2500mA, can be full charged in about 2.5 hours. LG Li-ion 18650 battery has no memory effect and with minimal self-discharge.
Reliable and safe
LG Chem is the leader of Li-ion 18650 battery technology, provide only reliable batteries, it is 100% safe by using the battery according to the cell datasheet.
| Items | Specifications | Notes |
| Nominal capacity | 2600mAh | 0.2C discharge, 2.75V cut-off |
| Nominal voltage | 3.6V | 0.2C discharge |
| Nominal energy | 9.36Wh | Capacity(Ah) × Voltage(V) |
| Charging voltage | 4.20 ± 0.05V | |
| Charging current | 1250mA 丨2500mA | Standard丨Rapid |
| Charging time | 3.5 hours 丨2.5 hours | Standard丨Rapid |
| Charging method | CC - CV | Constant current, constant voltage |
| Continuous discharge current | 520mA 丨5000mA | Standard丨Maximum |
| Peak discharge current | 6A | Within a short time |
| Discharge end voltage | 2.75V | Discharge cut-off voltage |
| Dimensions | 18.3mm丨65mm | Diameter丨Height |
| Typical weight | 48g | 1.69 oz |
| Charge temperature range | +0 ~ +60°C | +50 ~ 110°F |
| Discharge temperature range | -10 ~ +45°C | -4 ~ +140°F |
| Storage temperature | -10 ~ +45°C | Within 3 months |
