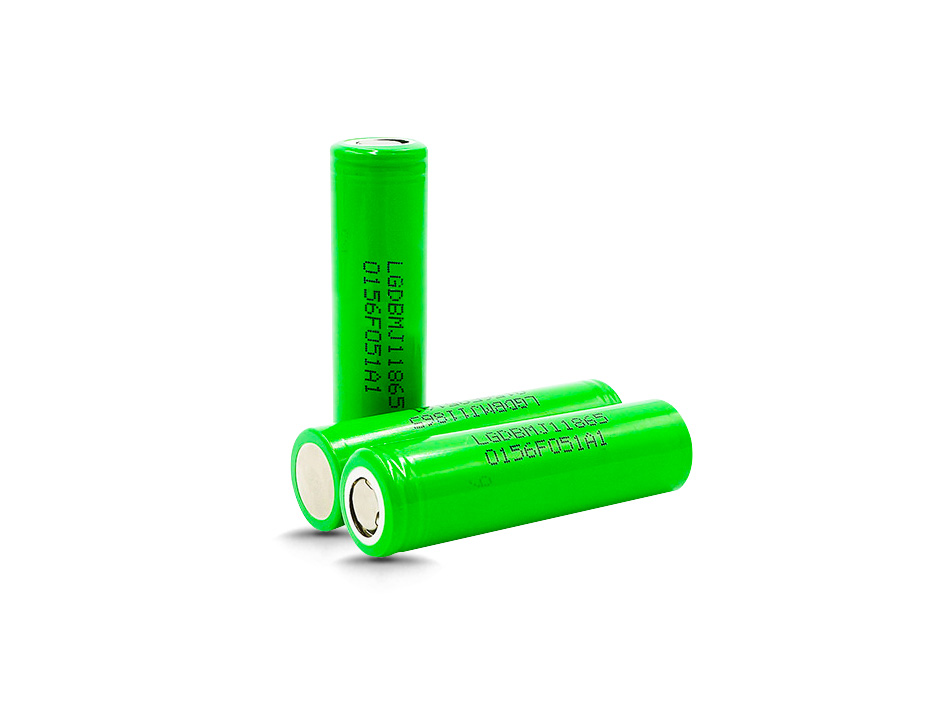

LG MJ1 18650 3500mAh 10A Battery - INR18650MJ1

LG INR18650MJ1 3500mAh Battery - Nominal voltage 3.635V; Nominal capacity 3500mAh; Maximum discharge current 10A; Discharge cut-off voltage 2.5V.

  • lg mj1
LG MJ1 18650 3500mAh 10A Battery - INR18650MJ1

LG MJ1 18650 3500mAh 10A Battery - INR18650MJ1

  • Cell model LG INR18650MJ1
  • Typical capacity 3500mAh
  • Minimum capacity 3400mAh
  • Nominal voltage 3.635V
  • Maximum discharge current 10A
  • Cell specification Datasheet download
  • Applications eBikes, Electirc scooters, LED flashlight
ItemsSpecificationsNotes
Nominal capacity3500mAh0.2C discharge, 2.5V cut-off
Nominal voltage3.635V0.2C discharge
Nominal energy12.72WhCapacity(Ah) × Voltage(V)
Charging voltage4.20 ± 0.05V
Charging current1700mA 丨3400mAStandard丨Rapid
Charging time3.5 hours 丨2.5 hoursStandard丨Rapid
Charging methodCC - CVConstant current, constant voltage
Continuous discharge current680mA 丨6800mAStandard丨Maximum
Peak discharge current10AWithin a short time
Discharge end voltage2.5VDischarge cut-off voltage
Dimensions18.4mm丨65.0mmDiameter丨Height
Typical weight49g1.73 oz
Charge temperature range+0 ~ +60°C+50 ~ 110°F
Discharge temperature range-10 ~ +45°C-4 ~ +140°F
Storage temperature-10 ~ +45°CWithin 3 months
