30A continuous discharge current

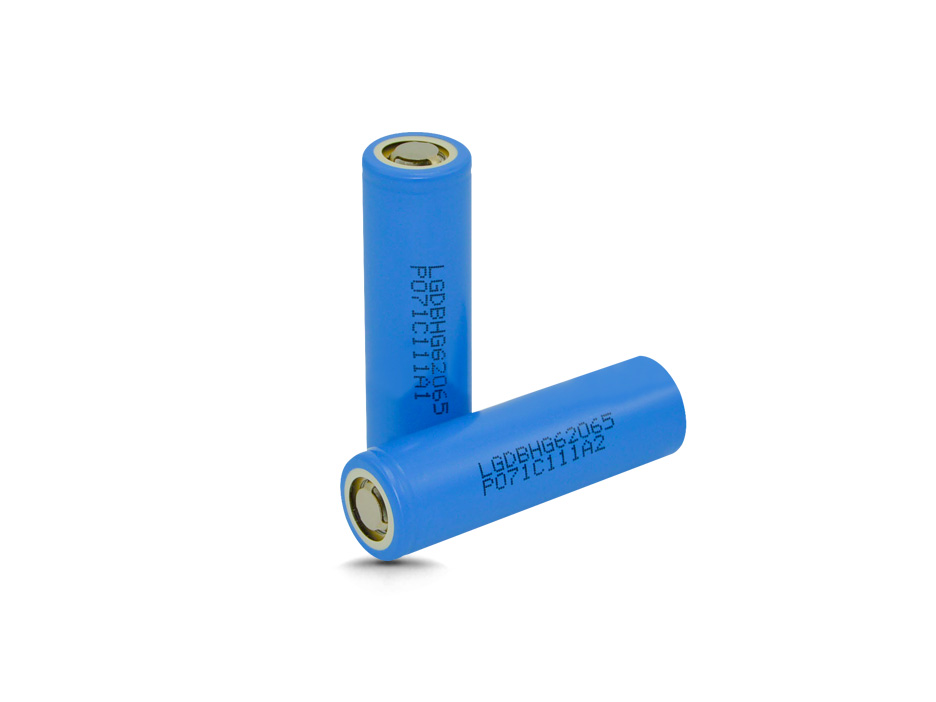

LG 20650HG6 3000mAh battery maximum continuous discharge current 30A, widely use on Power tools, Hoverboard, E-bikes, Electirc scooters.
High discharge performance
LG 20650HG6 battery provide powerful and constant power to the device or equipment, the discharge curve is quiet beautiful with high current load.
Fast charge and no memory effect
Maximum continuous charge current 4000mA, can be full charged in about 1.0 hours. LG Li-ion 20650 battery has no memory effect and with minimal self-discharge.
Reliable and safe
LG Chem is the leader of Li-ion 20650 battery technology, provide only reliable batteries, it is 100% safe by using the battery according to the cell datasheet.
| Items | Specifications | Notes |
| Nominal capacity | 3000mAh | 0.2C discharge, 2.5V cut-off |
| Nominal voltage | 3.6V | 0.2C discharge |
| Nominal energy | 10.8Wh | Capacity(Ah) × Voltage(V) |
| Charging voltage | 4.20 ± 0.05V | |
| Charging current | 1500mA 丨4000mA | Standard丨Rapid |
| Charging time | 3.5 hours 丨1.0 hours | Standard丨Rapid |
| Charging method | CC - CV | Constant current, constant voltage |
| Continuous discharge current | 600mA 丨30A | Standard丨Maximum |
| Peak discharge current | 35A | Within a short time |
| Discharge end voltage | 2.5V | Discharge cut-off voltage |
| Dimensions | 20.5mm丨65.2mm | Diameter丨Height |
| Typical weight | 58g | 2.04 oz |
| Charge temperature range | +0 ~ +60°C | +50 ~ 110°F |
| Discharge temperature range | -10 ~ +45°C | -4 ~ +140°F |
| Storage temperature | -10 ~ +45°C | Within 3 months |
