Molicel P26A

Molicel P26A 18650 2600mAh 35A Battery - Nominal voltage 3.6V; Nominal capacity 2600mAh; Maximum discharge current 35A; Discharge cut-off voltage 2.5V.

  • P26A

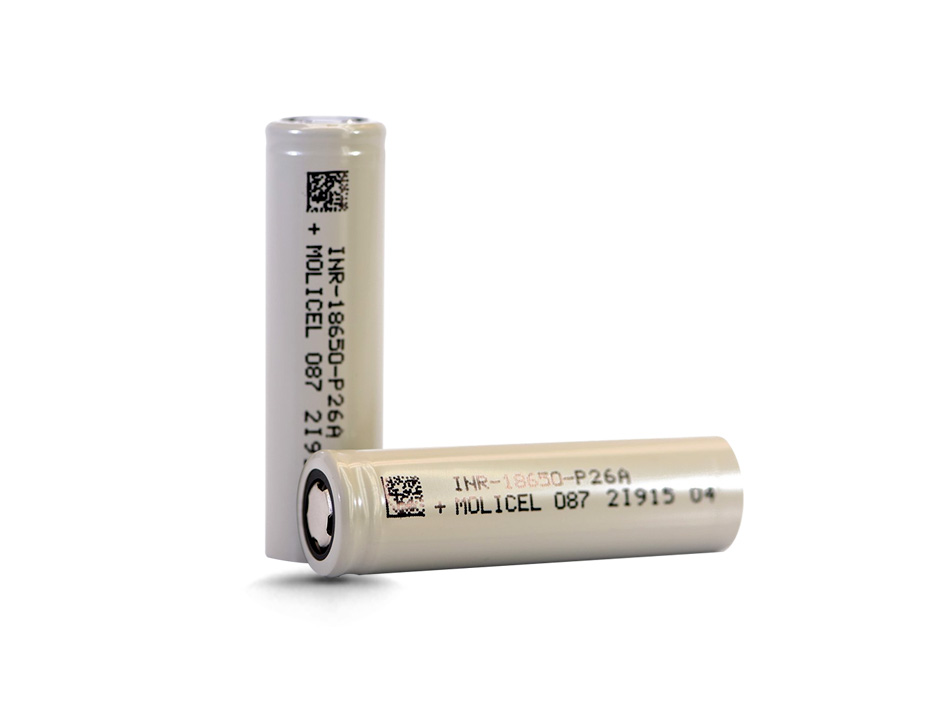

Molicel P26A 18650 2600mAh 35A Battery

Molicel P26A 18650 2600mAh 35A Battery

  • Cell model Molicel INR-18650-P26A
  • Typical capacity 2600mAh
  • Minimum capacity 2500mAh
  • Nominal voltage 3.6V
  • Max. discharge current 35A
  • Cell specification Datasheet download
  • Applications Power tools, Hoverboard, E-bikes, Electirc scooters
ItemsSpecificationsNotes
Nominal capacity2600mAh0.2C discharge, 2.5V cut-off
Nominal voltage3.6V1C discharge
Nominal energy9.36WhCapacity(Ah) × Voltage(V)
Charging voltage4.20 ± 0.05V
Charging current520mA 丨6000mAStandard丨Rapid
Charging time6.0 hours 丨60 minsStandard丨Rapid
Charging methodCC - CVConstant current, constant voltage
Continuous discharge current520mA 丨20AStandard丨Maximum
Peak discharge current35AWithin a short time
Discharge end voltage2.5VDischarge cut-off voltage
Dimensions18.3mm丨65.05mmDiameter丨Height
Typical weight48g1.69 oz
Charge temperature range+0 ~ +60°C+50 ~ 110°F
Discharge temperature range-10 ~ +45°C-4 ~ +140°F
Storage temperature-10 ~ +45°CWithin 3 months
