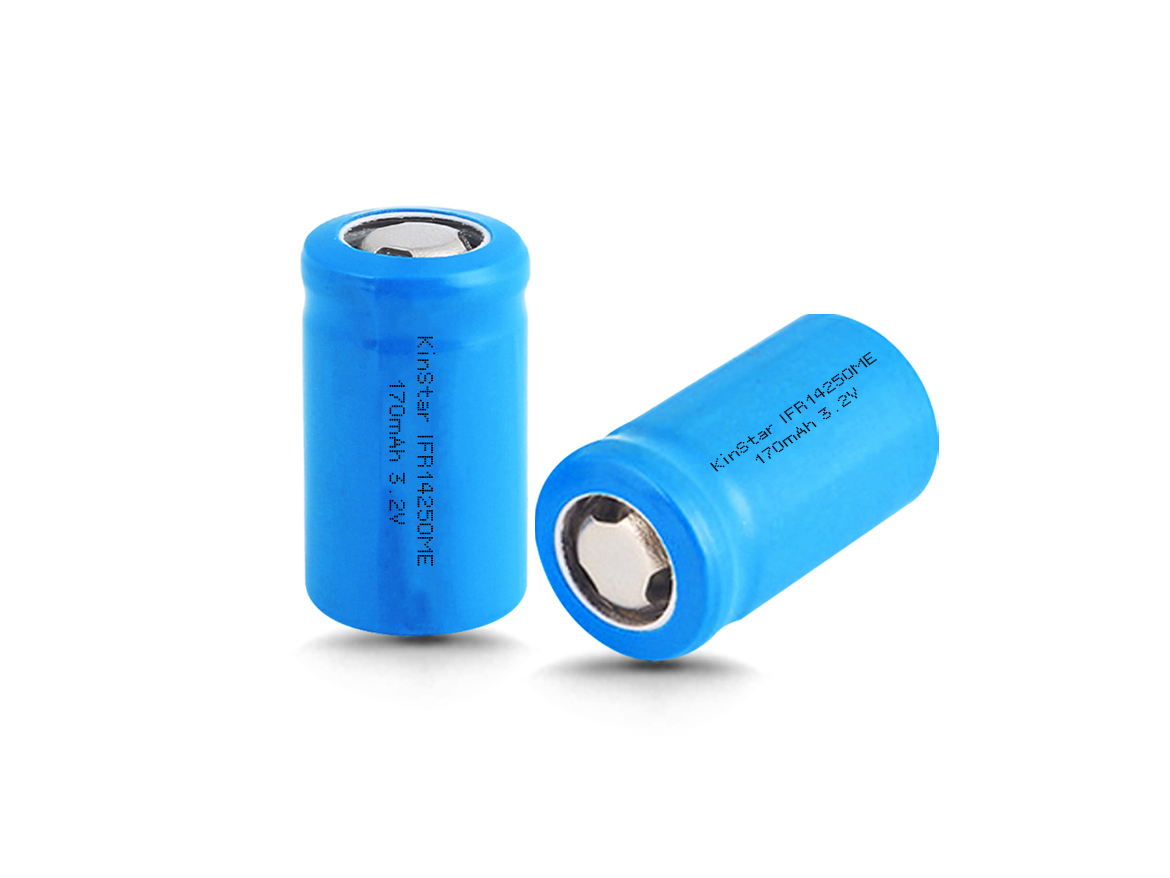

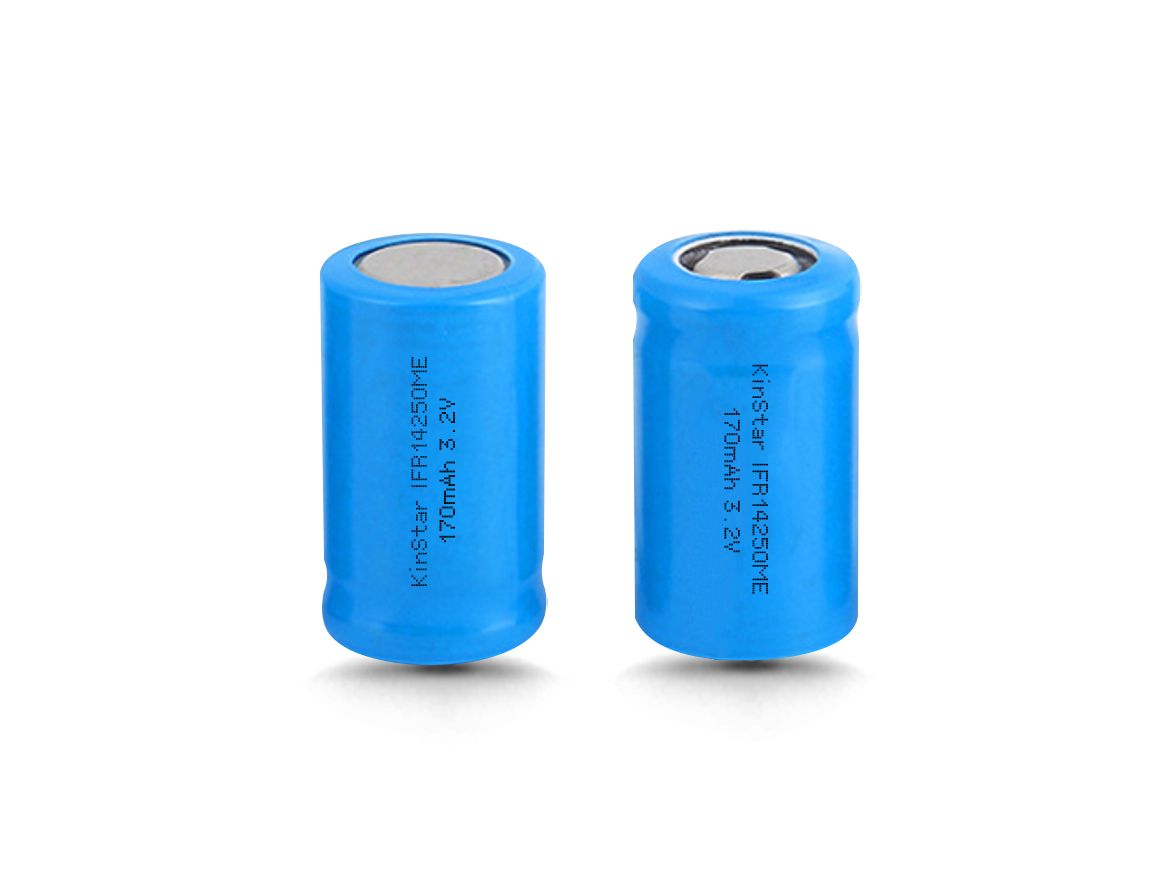

IFR 14250 - 170mAh 3.2V LiFePO4 Battery - KinStar

IFR 14250 - 170mAh 3.2V LiFePO4 Battery - KinStar

  • Cell model IFR14250ME
  • Typical capacity 170mAh
  • Minimum capacity 160mAh
  • Nominal voltage 3.2V
  • Nominal energy 0.544Wh
  • Max. discharge curent 510mA
  • Dimensions Φ14.4mm丨H 25mm
  • Service life ≥2000 cycles
ItemsSpecificationsNotes
Charge voltage3.6V
Standard charging current34
mA
Standard charging time6.0Hours
Rapid charging current85
mA
Charging methodCC 丨CVConstant current丨constant voltage
Standard disharging current34mA
Discharge end voltage2.0V
Internal resistance≤100mΩAC impedance 1 kHz
Weight≤10g
Charge temperature0~60°C
Discharge temperature-20~ 60°C
Less than 3 month storage-20 ~ 40°C
Less than 1 year storage-20 ~ 20°C
