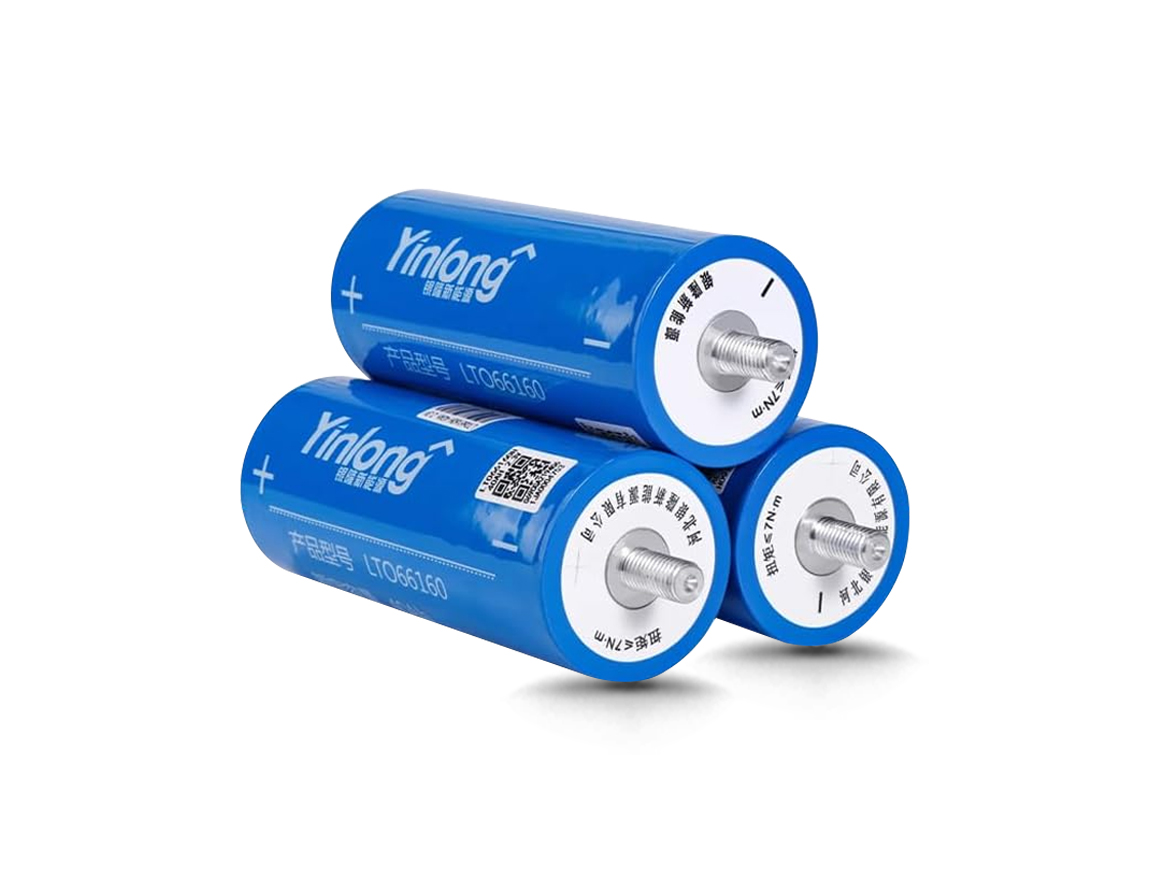

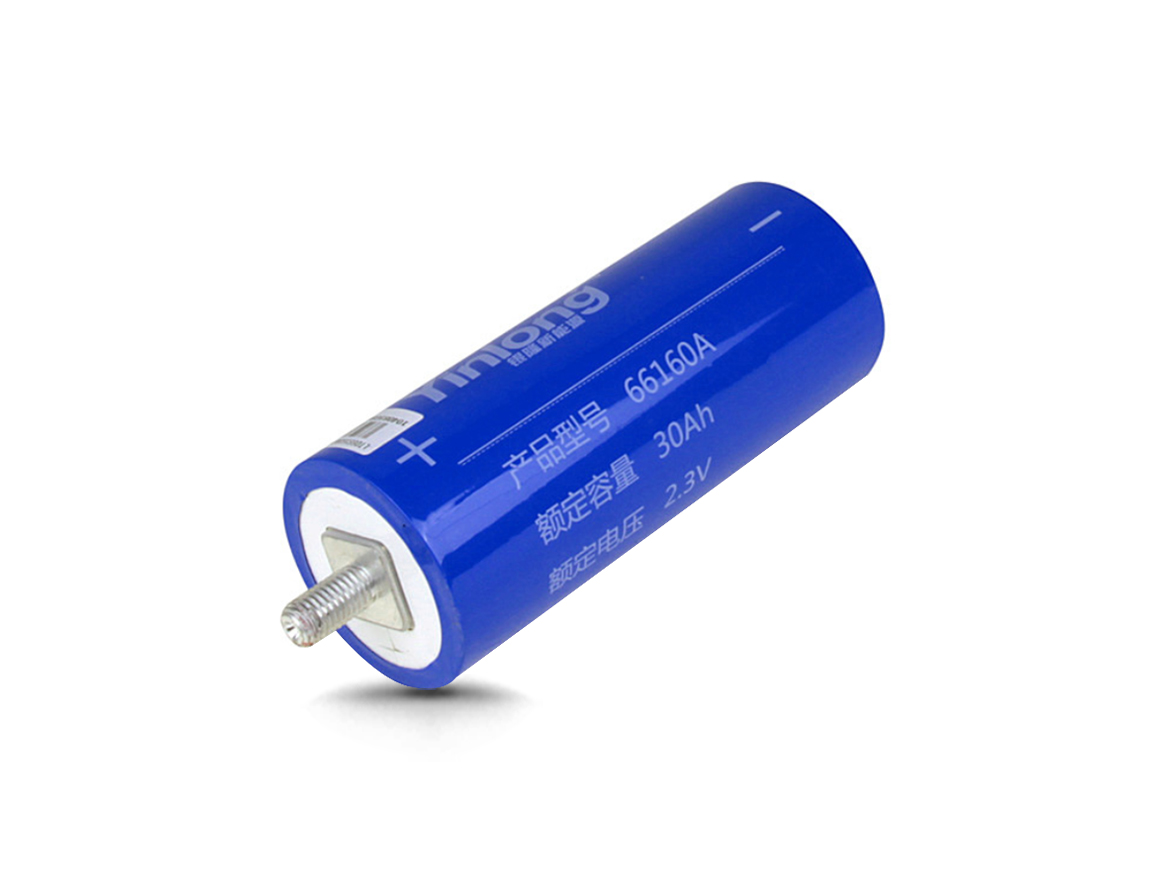

Yinlong LTO66160A 30Ah LTO Cylindrical Battery Cells

Yinlong LTO66160A 30Ah LTO Cylindrical Battery Cells

  • Cell model   LTO66160A
  • Typical capacity   30Ah
  • Minimum capacity  29.5Ah
  • Nominal voltage   2.3V
  • Nominal energy   69Wh
  • Max. continuous discharge current  150A

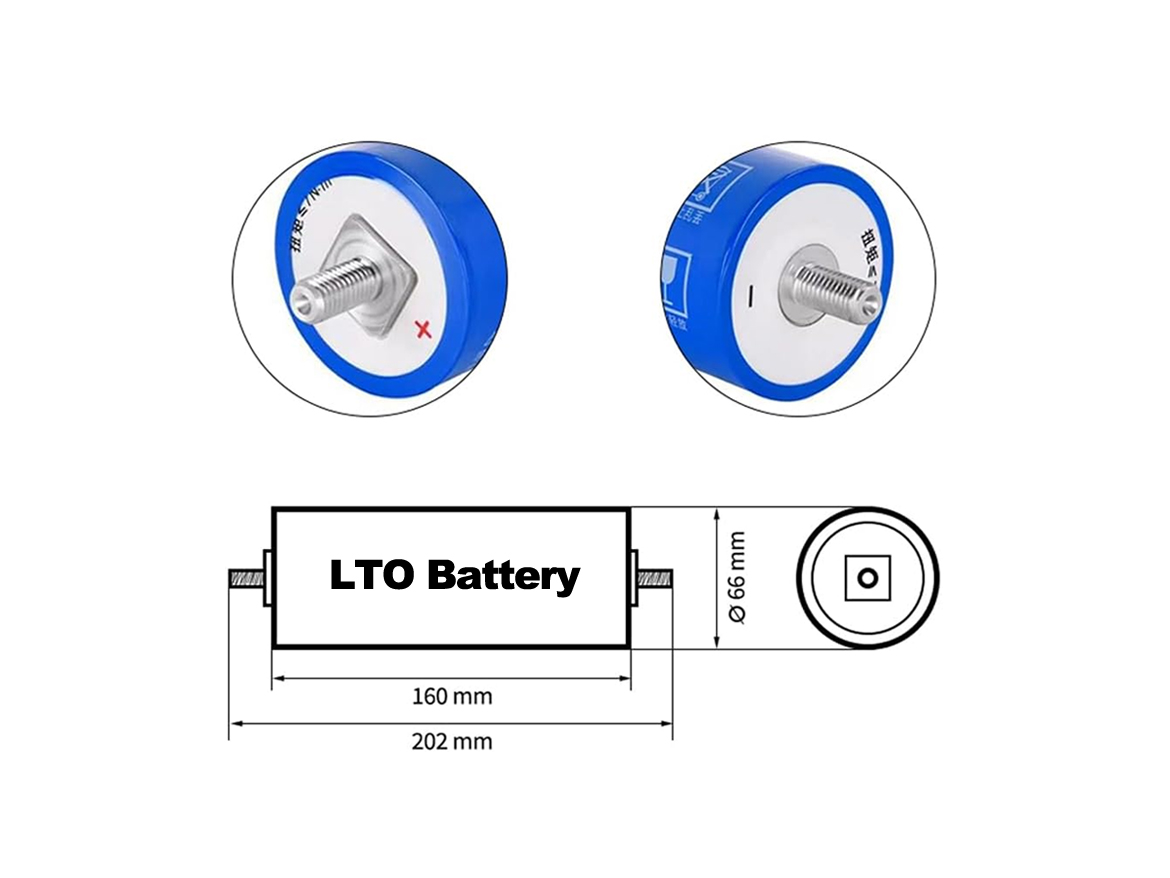

  • Dimensions  φ66丨160丨202mm
  • Service life  ≥20,000 cycles
ItemsSpecificationsNotes
Charging voltage2.8V
V
Standard charging current30
A
Standard charging time2.0Hours
Rapid charging current150
 A
Charging methodCC丨CVConstant current丨constant voltage
Standard discharge current30
A
Pulse discharge current (10s)300
A
Discharge end voltage1.5
V
Internal resistance≤0.8mΩAC impedance 1 kHz
Typical weight≤1200g
Charge temperature-50 ~ +65
°C
Discharge temperature-50 ~ +65°C
Less than 3 months storage-20 ~ +45°C
Less than 1 year storage-20 ~ +20°C
