The right battery pack for you

Choose the battery that suits you best. Kinstar battery packs are available with Lithium-ion, Li-Polymer and LiFePO4. All three offer high energy density, long service life, high output energy and zero memory effect.

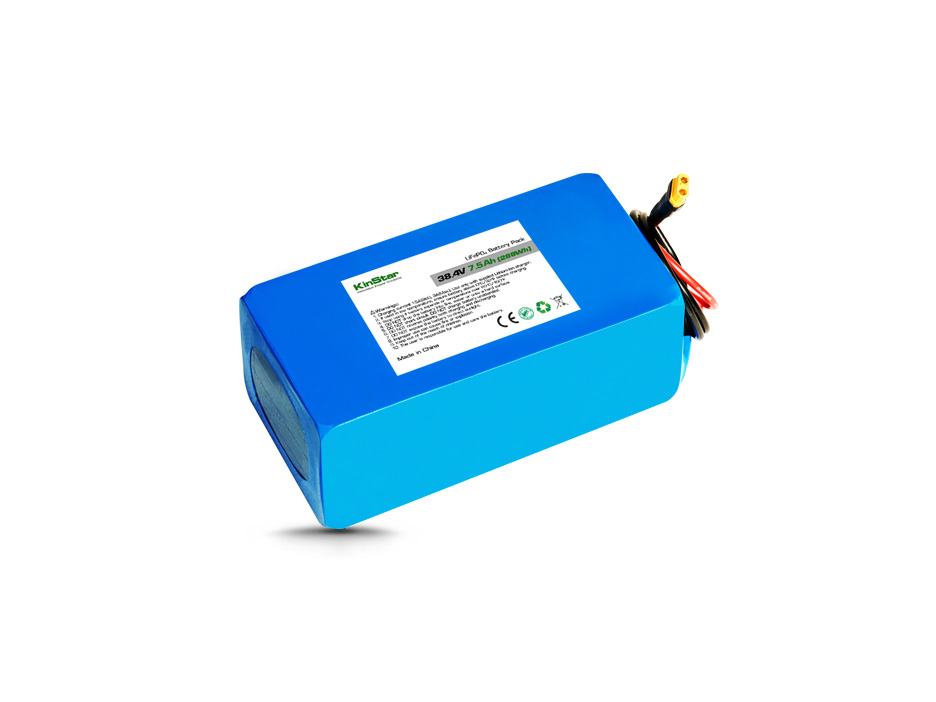

Kinstar LiFePO4 18650 38.4V 7.5Ah 12S5P Rechargeable Battery with BMS & XT60

Kinstar LiFePO4 18650 38.4V 7.5Ah 12S5P Rechargeable Battery with BMS & XT60

  • Item No. LF1812S7500E
  • Nominal capacity 7500mAh
  • Nominal voltage 38.4V
  • Cell type LiFePO4 Cylindrical
  • Cell model Kinstar IFR18650E
  • Connector XT60
  • Applications LED Flashlights, Toys Electronic Devices Power Devices
ItemsSpecificationsNotes
Nominal capacity7500mAh0.2C discharge at 25°C
Nominal voltage38.4VAverage operating voltage
Nominal energy288WhCapacity(A) × Voltage(V)
Charging voltage43.20 ± 0.05V
Charging current1875mA 丨3000mAStandard丨Rapid
Charging time5.0 hours 丨3.5 hoursStandard丨Rapid
Charging methodCC - CVConstant current, constant voltage
Continuous discharge current1500mA 丨10AStandard丨Maximum
Peak discharge current20AWithin a short time
Discharge end voltage24VDischarge cut-off voltage
Dimensions205mm丨115mm72mmLength丨Width丨Height
Typical weight2850g100.50 oz
Charge temperature range+10 ~ +45°C+50 ~ 110°F
Discharge temperature range-20 ~ +60°C-4 ~ +140°F
Storage temperature-20 ~ +45°CWithin 3 months
