Excellent battery efficiency
KinStar Tiger Shark Battery 36V 10Ah Reention DS-4 provide staying power, demonstrably have high energy density with small size and low weight for maximum riding pleasure.
Modern design and easy handling

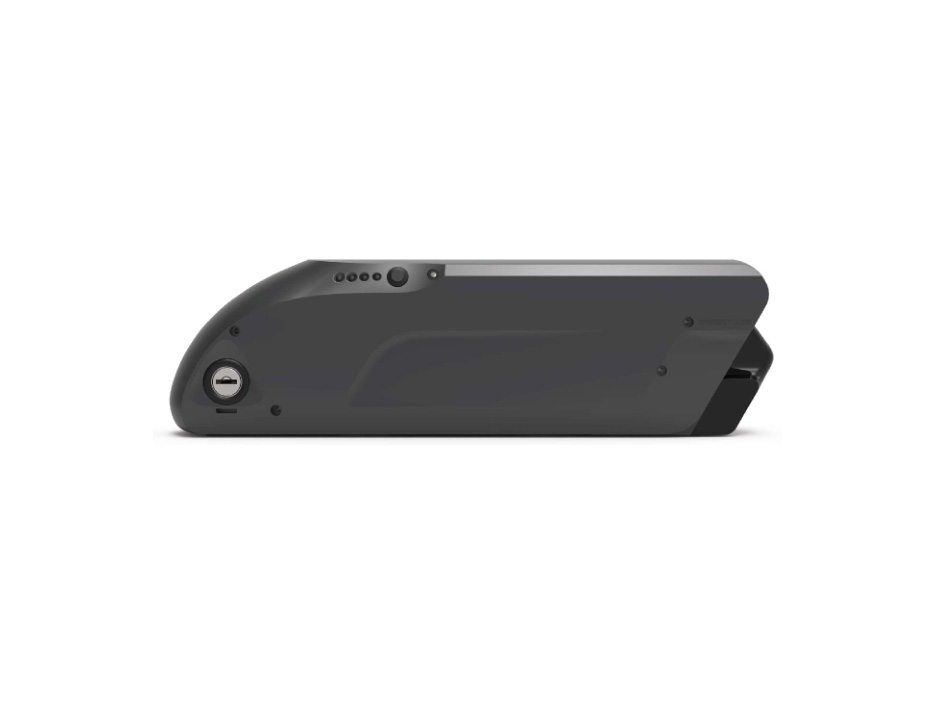

The Tiger Shark Battery 36V 10Ah Reention DS-4 with a modern design which featured with a 5V 1A USB port. It is easy to remove the battery and charge it separate. It can also be conveniently charged on the eBike.
Fast charge and no memory effect
KinStar Tiger Shark Battery 36V 10Ah Reention DS-4 can be full charged in about 6.0 hours, durable energy storage without memory effect and extremely low self-discharge.
Long service life
The BMS(Battery Management System) offers maximum protection against overcharging, overdischarging, overcurrent, overheating and short circuits as well as extending the service life of the battery pack.
| Items | Specifications | Notes |
| Nominal capacity | 10Ah | 0.2C discharge at 25°C |
| Nominal voltage | 36V | Average operating voltage |
| Nominal energy | 364Wh | Capacity(Ah) × Voltage(V) |
| Charging voltage | 42.00 ± 0.05V | |
| Charging current | 2A 丨3A | Standard丨Rapid |
| Charging time | 6.0 hours 丨5.0 hours | Standard丨Rapid |
| Charging method | CC - CV | Constant current, constant voltage |
| Continuous discharge current | 5A 丨10A | Standard丨Maximum |
| Peak discharge current | 40A | Within a short time |
| Discharge end voltage | 27.5V | Discharge cut-off voltage |
| Dimensions | 342mm丨78mm丨99mm | Length丨Width丨Height |
| Typical weight | 3.2 KG | 112.80 oz |
| Charge temperature range | +10 ~ +45°C | +50 ~ 110°F |
| Discharge temperature range | -20 ~ +60°C | -4 ~ +140°F |
| Storage temperature | -20 ~ +45°C | Within 3 months |
