Modern design and easy handling

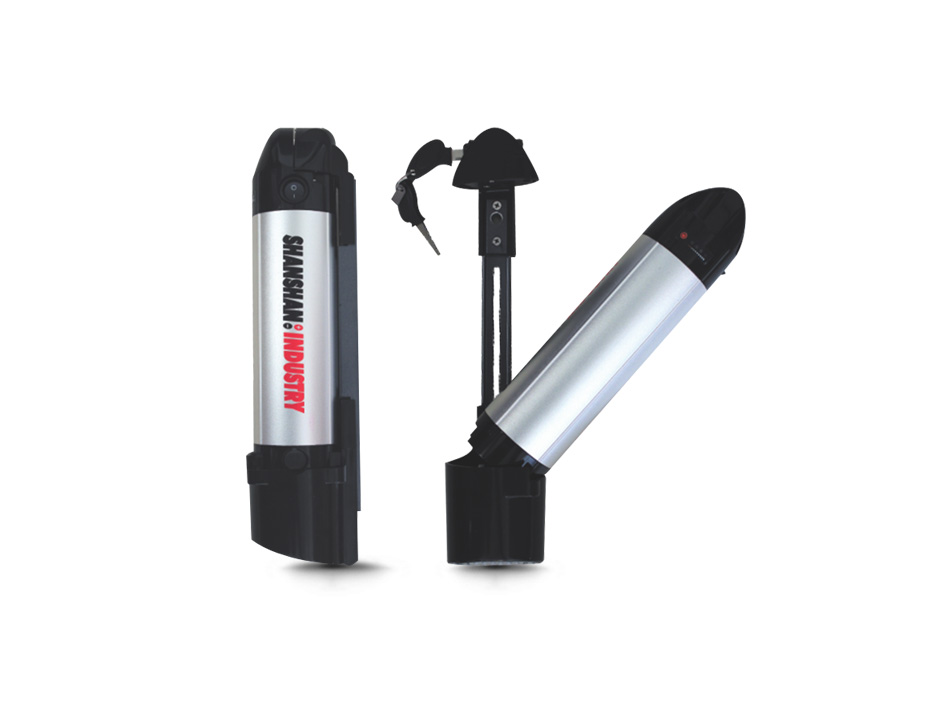

The 24V 5Ah Bottle Battery SSE-036 with a modern design which featured with four levels LED battery meter. It is easy to remove by sideslip and charge the battery separate.
Light weight but powerful
The weight of 24V 5Ah Bottle Battery SSE-036 only 1.6KG, could be firmly installed on the bike downtube by screws. With a built-in 15A BMS which can easy to drive 250W motors with 25KM/h speed.
Reliable and safe
Kinstar 24V 5Ah Bottle Battery SSE-036 build with reliable Samsung 25R cells and smart BMS for protecting battery from overcharge, overdischarge, overcurrent, overheat and shortcircuits.
Long service life
The high quality Samsung 25R cells provide long service life, the cell datasheet stated 300 cycles by remaining 70% of rated capacity, charge at 0.2C and discharge at 1C.
| Items | Specifications | Notes |
| Nominal capacity | 5.0Ah | 0.2C丨2.5V cut-off丨25℃ |
| Nominal voltage | 25.2V | Average operating voltage |
| Nominal energy | 126Wh | Capacity(Ah) × Voltage(V) |
| Charging voltage | 29.4 ± 0.05V | |
| Charging current | 1.5A 丨2A | Standard丨Rapid |
| Charging time | 5.0 hours 丨4.0 hours | Standard丨Rapid |
| Charging method | CC - CV | Constant current, constant voltage |
| Continuous discharge current | 6.4A 丨15A | Standard丨Maximum |
| Peak discharge current | 45A | Within a short time |
| Discharge end voltage | 19.25V | Discharge cut-off voltage |
| Dimensions | 70mm丨303mm | Diameter丨Length |
| Typical weight | 1.6 KG | 56.44 oz |
| Charge temperature range | +10 ~ +45°C | +50 ~ 110°F |
| Discharge temperature range | -20 ~ +60°C | -4 ~ +140°F |
| Storage temperature | -20 ~ +45°C | Within 3 months |
