Modern design and easy handling

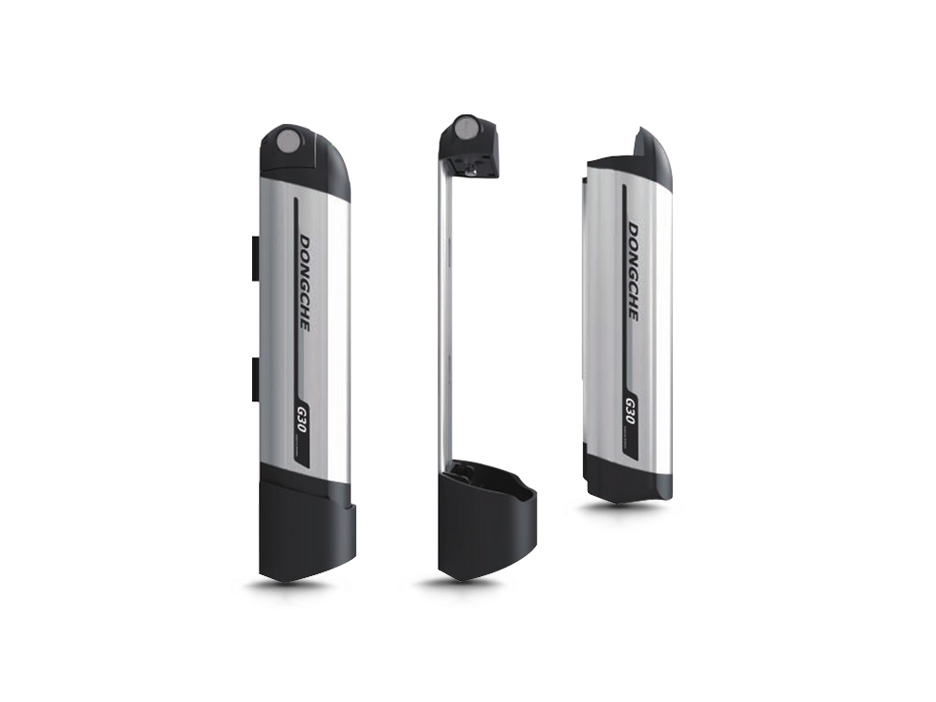

The Battery Water Bottle 48V 10Ah SSE-100 with a modern design which featured with four levels LED battery meter. It is easy to remove the battery and charge it separate.
Light weight but powerful
The weight of Battery Water Bottle 48V 10Ah SSE-100 only 3.0KG, could be firmly installed on the bike downtube by screws. With a built-in 15A BMS which can easy to drive 250W motors with 25KM/h speed.
Reliable and safe
KinStar Battery Water Bottle 48V 10Ah SSE-100 build with reliable Samsung 35E cells and smart BMS for protecting battery from overcharge, overdischarge, overcurrent, overheat and shortcircuits.
Long service life
The high quality Samsung 35E cells provide long service life, the cell datasheet stated 300 cycles by remaining 70% of rated capacity, charge at 0.2C and discharge at 1C.
| Items | Specifications | Notes |
| Nominal capacity | 10.2Ah | 0.2C丨2.5V cut-off丨25℃ |
| Nominal voltage | 46.8V | Average operating voltage |
| Nominal energy | 477.4Wh | Capacity(Ah) × Voltage(V) |
| Charging voltage | 54.60 ± 0.05V | |
| Charging current | 2A 丨3A | Standard丨Rapid |
| Charging time | 7.0 hours 丨5.0 hours | Standard丨Rapid |
| Charging method | CC - CV | Constant current, constant voltage |
| Continuous discharge current | 5A 丨10A | Standard丨Maximum |
| Peak discharge current | 45A | Within a short time |
| Discharge end voltage | 35.75V | Discharge cut-off voltage |
| Dimensions | 78mm丨446mm | Diameter丨Length |
| Typical weight | 3.0 KG | 105.8 oz |
| Charge temperature range | +10 ~ +45°C | +50 ~ 110°F |
| Discharge temperature range | -20 ~ +60°C | -4 ~ +140°F |
| Storage temperature | -20 ~ +45°C | Within 3 months |
