Modern design and easy handling

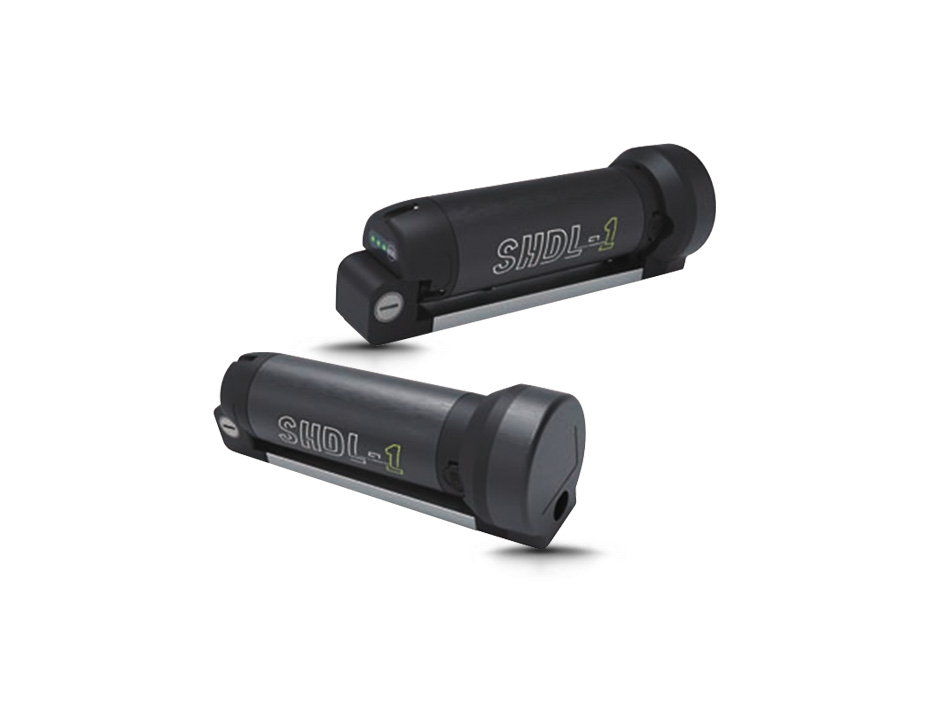

The Bottle Battery 24V 6.4Ah SSE-131 SHDL I with a modern design which featured with three LED battery meter. It is easy to remove the battery and charge it separate.
Light weight but powerful
The weight of Bottle Battery 24V 6.4Ah SSE-131 SHDL I only 1.6KG, could be firmly installed on the bike downtube by screws. With a built-in 15A BMS which can easy to drive 250W motors with 25KM/h speed.
Reliable and safe
Kinstar Bottle Battery 24V 6.4Ah SSE-131 SHDL I build with reliable Panasonic BD cells and smart BMS for protecting battery from overcharge, overdischarge, overcurrent, overheat and shortcircuits.
Long service life
The high quality Panasonic BD cells provide long service life, the cell datasheet stated 300 cycles by remaining 70% of rated capacity, charge at 0.2C and discharge at 1C.
| Items | Specifications | Notes |
| Nominal capacity | 6.4Ah | 0.2C丨2.5V cut-off丨25℃ |
| Nominal voltage | 25.2V | Average operating voltage |
| Nominal energy | 161.3Wh | Capacity(Ah) × Voltage(V) |
| Charging voltage | 29.4 ± 0.05V | |
| Charging current | 1.5A 丨2A | Standard丨Rapid |
| Charging time | 6.0 hours 丨5.0 hours | Standard丨Rapid |
| Charging method | CC - CV | Constant current, constant voltage |
| Continuous discharge current | 3.2A 丨10A | Standard丨Maximum |
| Peak discharge current | 45A | Within a short time |
| Discharge end voltage | 19.25V | Discharge cut-off voltage |
| Dimensions | 88.5mm丨250mm | Diameter丨Length |
| Typical weight | 1.6 KG | 56.44 oz |
| Charge temperature range | +10 ~ +45°C | +50 ~ 110°F |
| Discharge temperature range | -20 ~ +60°C | -4 ~ +140°F |
| Storage temperature | -20 ~ +45°C | Within 3 months |
