Modern design and easy handling

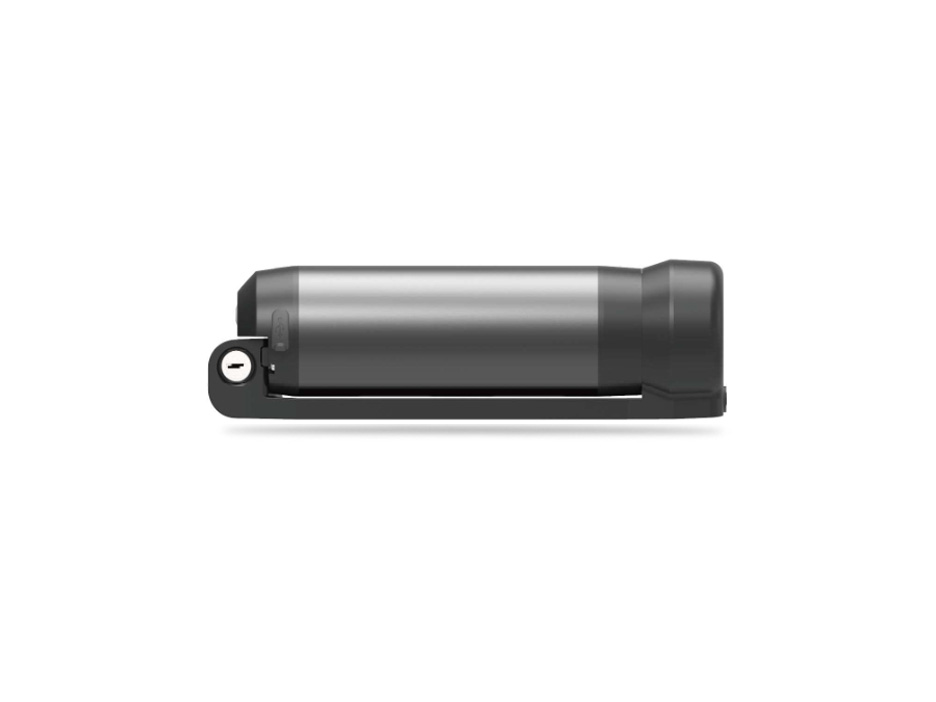

The 24V 10Ah Reention Cuttle DC-2170-1C with a modern design which featured with a 5V 1A USB and a three-color LED battery meter. It is easy to remove the battery and charge it separate.
Light weight but powerful
The weight of 24V 10Ah Reention Cuttle DC-2170-1C battery only 1.8KG, could be firmly installed on the bike downtube by screws. With a built-in 12A BMS which can easy to drive 250W motors with 25KM/h speed.
Reliable and safe
KinStar 24V 10Ah Reention Cuttle DC-2170-1C battery build with reliable Samsung INR18650-50E cells and smart BMS for protecting battery from overcharge, overdischarge, overcurrent, overheat and shortcircuits.
Long service life
The high quality Samsung INR18650-50E cells provide long service life, the cell datasheet stated 500 cycles by remaining 70% of rated capacity, both charge and discharge at 1C.
| Items | Specifications | Notes |
| Nominal capacity | 10Ah | 0.2C丨2.5V cut-off丨25℃ |
| Nominal voltage | 25.2V | Average operating voltage |
| Nominal energy | 252Wh | Capacity(Ah) × Voltage(V) |
| Charging voltage | 29.4 ± 0.05V | |
| Charging current | 2A 丨3A | Standard丨Rapid |
| Charging time | 6.0 hours 丨5.0 hours | Standard丨Rapid |
| Charging method | CC - CV | Constant current, constant voltage |
| Continuous discharge current | 5A 丨10A | Standard丨Maximum |
| Peak discharge current | 40A | Within a short time |
| Discharge end voltage | 19.25V | Discharge cut-off voltage |
| Dimensions | 86mm丨277mm | Diameter丨Length |
| Typical weight | 1.8 KG | 63.5 oz |
| Charge temperature range | +10 ~ +45°C | +50 ~ 110°F |
| Discharge temperature range | -20 ~ +60°C | -4 ~ +140°F |
| Storage temperature | -20 ~ +45°C | Within 3 months |
