Modern design and easy handling

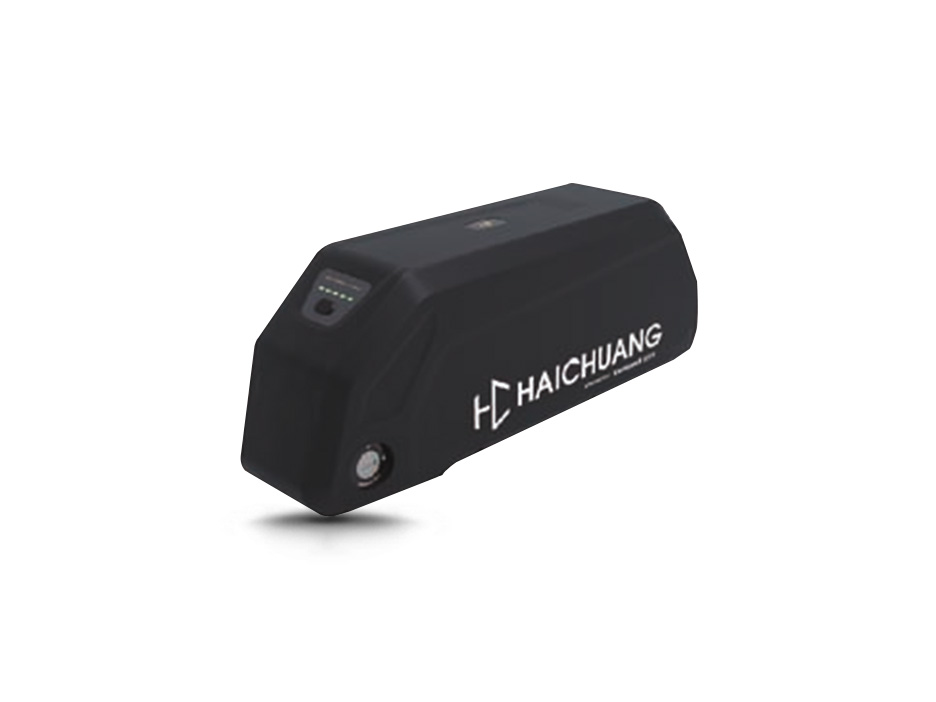

The 48V 16Ah eBike Battery SSE-151 HAICHUANG-G65 with a modern design which featured with a four LEDs battery meter. It is easy to remove the battery and charge it separate.
Excellent battery efficiency
KinStar 48V 16Ah eBike Battery SSE-151 HAICHUANG-G65 provide staying power, demonstrably have high energy density with streamlined design, small size and low weight for maximum riding pleasure.
Fast charge and no memory effect
KinStar 48V 16Ah eBike Battery SSE-151 HAICHUANG-G65 can be full charged in about 6.0 hours, durable energy storage without memory effect and extremely low self-discharge.
Long service life
The BMS(Battery Management System) offers maximum protection against overcharging, overdischarging, overcurrent, overheating and short circuits as well as extending the service life of the battery pack.
| Items | Specifications | Notes |
| Nominal capacity | 16Ah | 0.2C discharge at 25°C |
| Nominal voltage | 46.8V | Average operating voltage |
| Nominal energy | 748.80Wh | Capacity(Ah) × Voltage(V) |
| Charging voltage | 54.60 ± 0.05V | |
| Charging current | 3A 丨4A | Standard丨Rapid |
| Charging time | 7.0 hours 丨6.0 hours | Standard丨Rapid |
| Charging method | CC - CV | Constant current, constant voltage |
| Continuous discharge current | 8A 丨20A | Standard丨Maximum |
| Peak discharge current | 50A | Within a short time |
| Discharge end voltage | 35.75V | Discharge cut-off voltage |
| Dimensions | 320mm丨89mm丨120mm | Length丨Width丨Height |
| Typical weight | 4.50 KG | 158.70 oz |
| Charge temperature range | +10 ~ +45°C | +50 ~ 110°F |
| Discharge temperature range | -20 ~ +60°C | -4 ~ +140°F |
| Storage temperature | -20 ~ +45°C | Within 3 months |
