Excellent battery efficiency

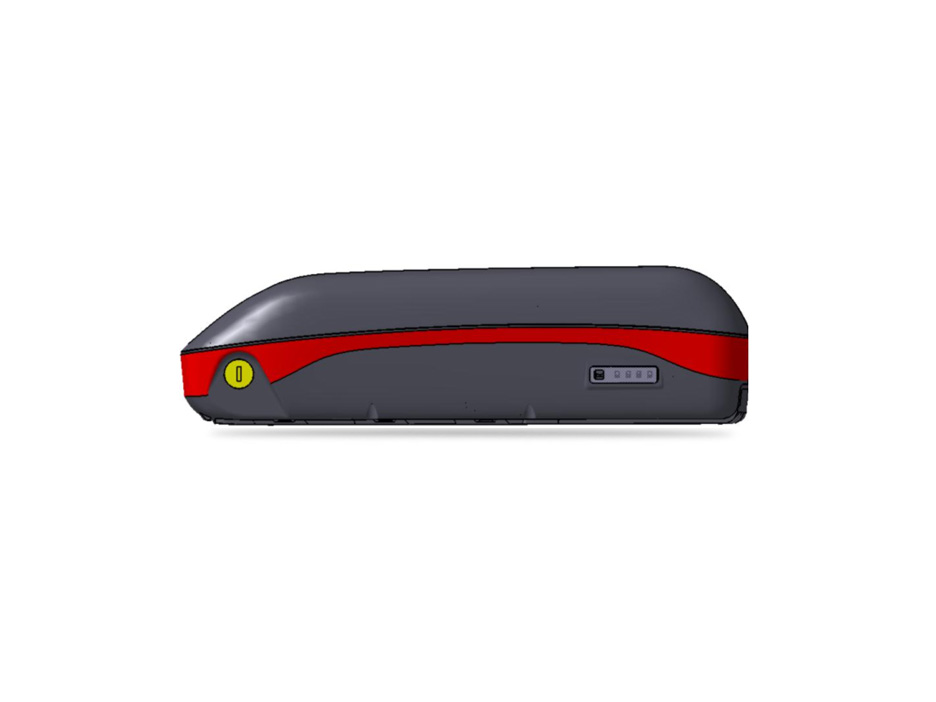

KinStar 36V 16Ah Lithium Battery for Electric Bike provide staying power, demonstrably have high energy density with small size and low weight for maximum riding pleasure.
Modern design and easy handling
The 36V 16Ah Lithium Battery for Electric Bike with a modern design which featured with a four level LED indicator. It is easy to remove the battery and charge it separate. It can also be charged on the eBike.
Fast charge and no memory effect
KinStar 36V 16Ah Lithium Battery for Electric Bike can be full charged in about 6.0 hours, durable energy storage without memory effect and extremely low self-discharge.
Long service life
The Battery Management System(BMS) offers maximum protection against overcharging, overdischarging, overcurrent, overheating and short circuits as well as extending the service life of the battery pack.
| Items | Specifications | Notes |
| Nominal capacity | 16Ah | Reference only |
| Nominal voltage | 36V | Average operating voltage |
| Nominal energy | 576Wh | Capacity(Ah) × Voltage(V) |
| Charging voltage | 42.00 ± 0.05V | |
| Charging current | 2A 丨4A | Standard丨Rapid |
| Charging time | 10 hours 丨6.0 hours | Standard丨Rapid |
| Charging method | CC - CV | Constant current, constant voltage |
| Continuous discharge current | 8A 丨10A | Standard丨Maximum |
| Peak discharge current | 45A | Within a short time |
| Discharge end voltage | 27.5V | Discharge cut-off voltage |
| Dimensions | 370mm丨102mm丨102mm | Length丨Width丨Height |
| Typical weight | 3.70 KG | 130.5 oz |
| Charge temperature range | +10 ~ +45°C | +50 ~ 110°F |
| Discharge temperature range | -20 ~ +60°C | -4 ~ +140°F |
| Storage temperature | -20 ~ +45°C | Within 3 months |
