Excellent battery efficiency

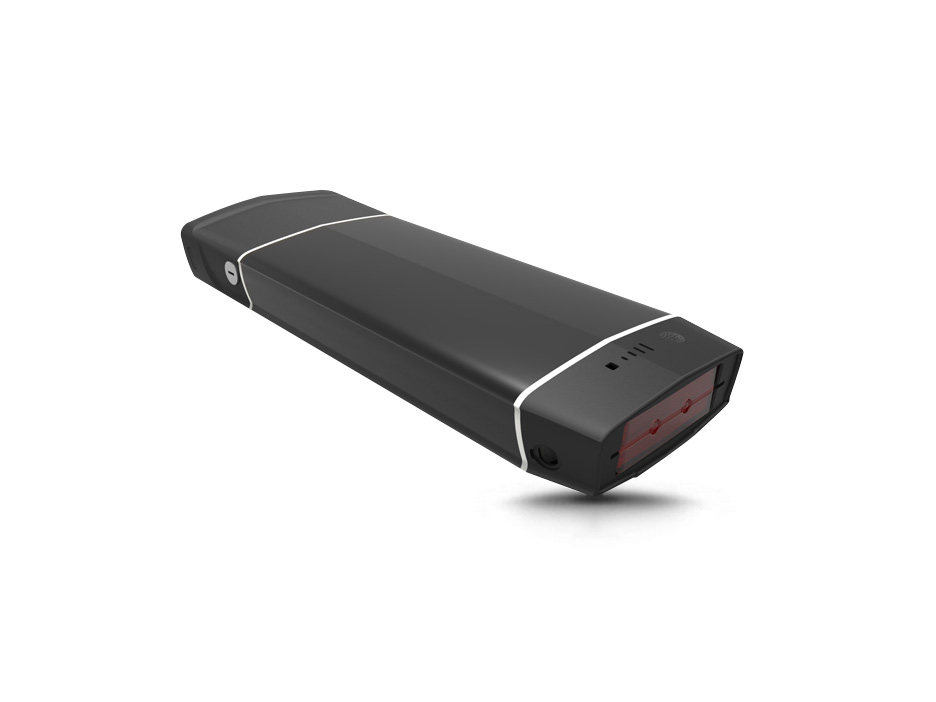

The 48V Samsung eBike Battery 14Ah SSE-069 JILONG II provide staying power, demonstrably have maximum energy density with small size and low weight for maximum riding pleasure.
Compact design and easy handling
The 48V Samsung eBike Battery 14Ah SSE-069 JILONG II with a compact design which featured with a beautiful taillight. It is easy to remove and charge the battery separate. It can also be charged directly on the eBike.
Fast charge and no memory effect
KinStar 48V Samsung eBike Battery 14Ah SSE-069 JILONG II can be full charged in about 6.0 hours, durable energy storage without memory effect and extremely low self-discharge.
Long service life
The Battery Management System(BMS) offers maximum protection against overcharging, overdischarging, overcurrent, overheating and short circuits as well as extending the service life of the battery pack.
| Items | Specifications | Notes |
| Nominal capacity | 14Ah | 0.2C discharge at 25°C |
| Nominal voltage | 46.8V | Average operating voltage |
| Nominal energy | 655.2Wh | Capacity(Ah) × Voltage(V) |
| Charging voltage | 54.60 ± 0.05V | |
| Charging current | 2A 丨3A | Standard丨Rapid |
| Charging time | 8.0 hours 丨6.0 hours | Standard丨Rapid |
| Charging method | CC - CV | Constant current, constant voltage |
| Continuous discharge current | 7A 丨15A | Standard丨Maximum |
| Peak discharge current | 45A | Within a short time |
| Discharge end voltage | 35.75V | Discharge cut-off voltage |
| Dimensions | 445mm丨163mm丨60mm | Length丨Width丨Height |
| Typical weight | 3.8 KG | 134 oz |
| Charge temperature range | +10 ~ +45°C | +50 ~ 110°F |
| Discharge temperature range | -20 ~ +60°C | -4 ~ +140°F |
| Storage temperature | -20 ~ +45°C | Within 3 months |
