Excellent battery efficiency

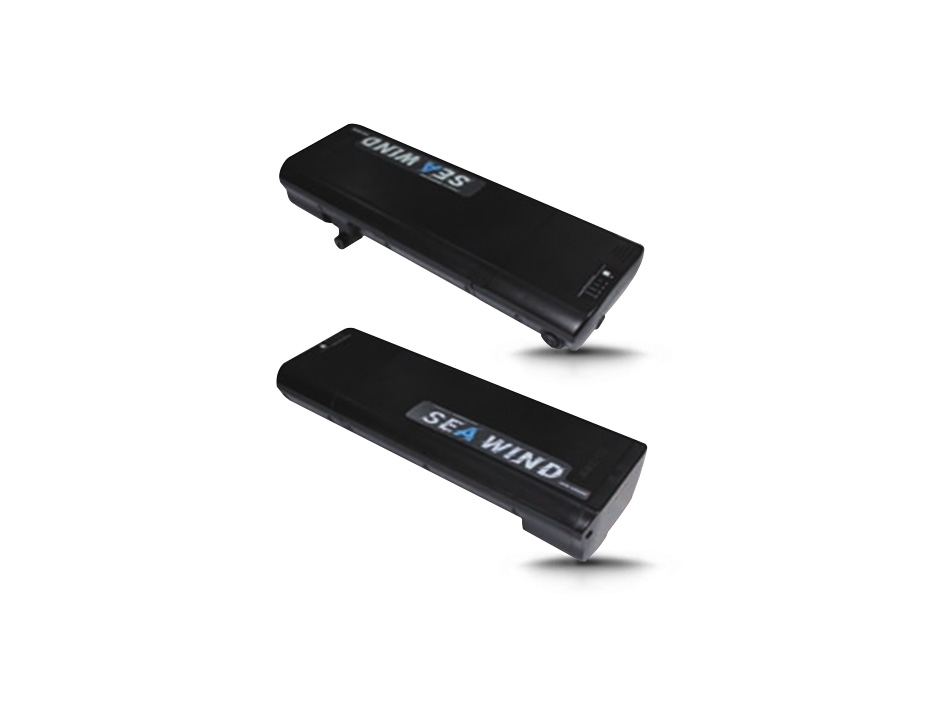

KinStar E Bike Battery 36V 9Ah SSE-126 SEA WIND provide staying power, demonstrably have maximum energy density with small size and low weight for maximum riding pleasure.
Modern design and easy handling
The E Bike Battery 36V 9Ah SSE-126 SEA WIND with a modern design which featured with a 4 levels LED indicator. It is easy to remove and charge the battery separate.
Fast charge and no memory effect
KinStar E Bike Battery 36V 9Ah SSE-126 SEA WIND can be full charged in about 6.0 hours, durable energy storage without memory effect and extremely low self-discharge.
Long service life
The Battery Management System(BMS) offers maximum protection against overcharging, overdischarging, overcurrent, overheating and short circuits as well as extending the service life of the battery pack.
| Items | Specifications | Notes |
| Nominal capacity | 9Ah | Reference only |
| Nominal voltage | 36V | Average operating voltage |
| Nominal energy | 324Wh | Capacity(Ah) × Voltage(V) |
| Charging voltage | 42.00 ± 0.05V | |
| Charging current | 2A 丨3A | Standard丨Rapid |
| Charging time | 6.0 hours 丨5.0 hours | Standard丨Rapid |
| Charging method | CC - CV | Constant current, constant voltage |
| Continuous discharge current | 5A 丨10A | Standard丨Maximum |
| Peak discharge current | 45A | Within a short time |
| Discharge end voltage | 27.5V | Discharge cut-off voltage |
| Dimensions | 338mm丨148mm丨60mm | Length丨Width丨Height |
| Typical weight | 2.7 KG | 95.20 oz |
| Charge temperature range | +10 ~ +45°C | +50 ~ 110°F |
| Discharge temperature range | -20 ~ +60°C | -4 ~ +140°F |
| Storage temperature | -20 ~ +45°C | Within 3 months |
