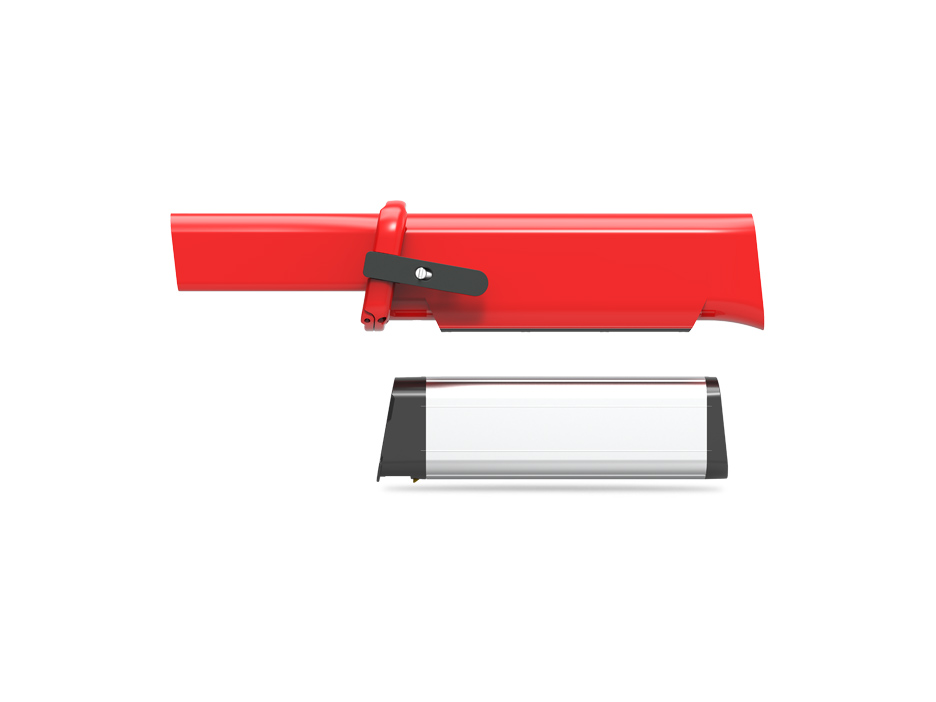

Kinstar Li-ion 36V 10Ah 360Wh Coral eBike Battery

Excellent battery efficiency
Kinstar Lithium-ion 36V 10Ah Coral FC-4-S eBike tube battery provide staying power, demonstrably have maximum energy density with small size and low weight for maximum riding pleasure.
Modern design and easy handling
The Coral FC-4-S tube eBike battery with a modern design which featured with a 4 LEDs indicator. It is easy to remove and charge the battery at home. It can also be conveniently charged directly on the eBike.
Fast charge and no memory effect
Kinstar Li-ion 36V 10Ah tube battery can be full charged in about 5 hours, faster than Ni-MH, Ni-Cd or Lead acid batteries. Durable energy storage without memory effect and with minimal self-discharge.
Long service life
The Battery Management System(BMS) offers maximum protection against overcharging, overdischarging, overcurrent, overheating and short circuits as well as extending the service life of the battery pack.

Items	Specifications	Notes
Nominal capacity	10Ah	0.2C discharge at 25°C
Nominal voltage	36V	Average operating voltage
Nominal energy	360Wh	Capacity(Ah) × Voltage(V)
Charging voltage	42 ± 0.05V
Charging current	2A 丨3A	Standard丨Rapid
Charging time	6.0 hours 丨5.0 hours	Standard丨Rapid
Charging method	CC - CV	Constant current, constant voltage
Continuous discharge current	5A 丨10A	Standard丨Maximum
Peak discharge current	40A	Within a short time
Discharge end voltage	27.5V	Discharge cut-off voltage
Dimensions	350mm丨59mm丨85mm	Length丨Width丨Height
Typical weight	3.25 KG	114.60 oz
Charge temperature range	+10 ~ +45°C	+50 ~ 110°F
Discharge temperature range	-20 ~ +60°C	-4 ~ +140°F
Storage temperature	-20 ~ +45°C	Within 3 months
